JSMSEMI

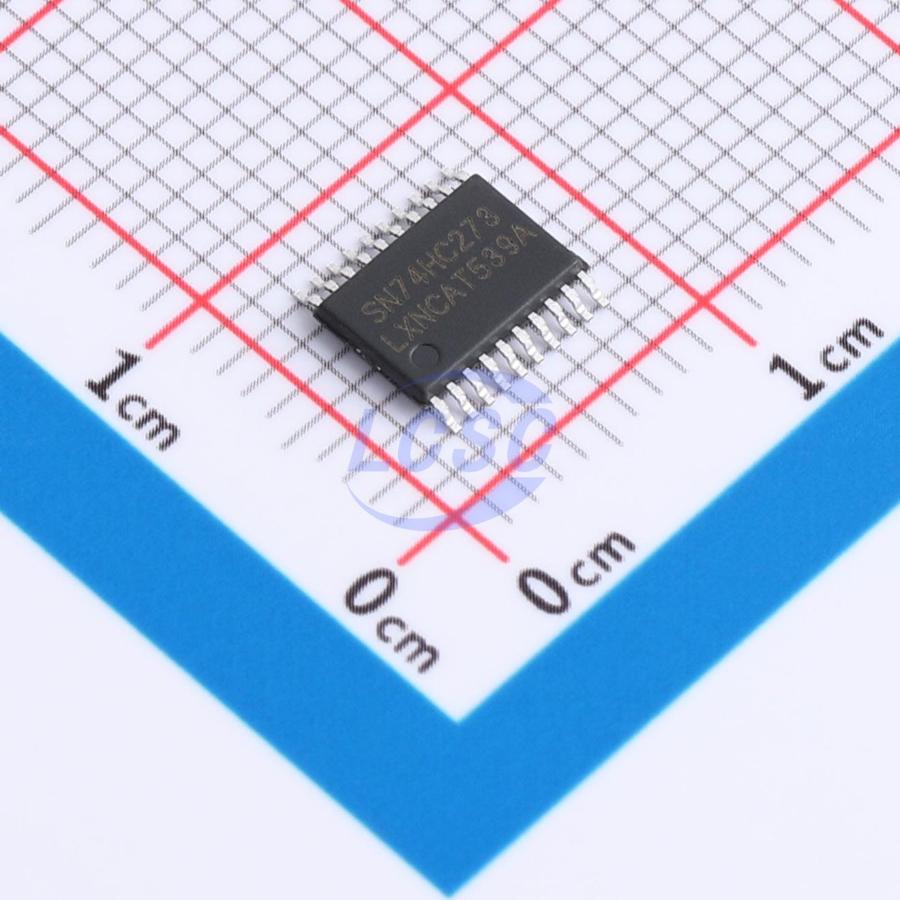

SN74HC273PWR-JSM

2V~6V 1 8 38ns@6V,50pF TSSOP-20 Flip Flops RoHS

TSSOP-20ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC273PWR-JSM
Store part #: C44512760
Package / case: TSSOP-20
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,445 in stock

#C44512760

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹22.70	₹113.50
50+	₹17.98	₹899.00
150+	₹15.96	₹2,394.00
500+	₹13.44	₹6,720.00
2,500+	₹12.32	₹30,800.00
4,000+	₹11.64	₹46,560.00

Quantity (min 5, multiples of 5)

5 × ₹22.70

₹113.50

excl. GST

₹133.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC273PWR-JSM

₹113.50 for 5 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 1
Operating Temperature: -40℃~+125℃
Series: 74HC
Synchronous/Asynchronous: Asynchronous
Current - Output High(IOH): 5.2mA
Number of Elements: 8
Current - Output Low(IOL): 5.2mA
Quiescent Current: 8uA
Setup Time: 3ns
Hold Time: -2ns
Propagation Delay: 38ns@6V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.197 g

Overview

The 74HC/HCT273 is an 8-bit positive edge-triggered D-type flip-flop with clock (CP) and master reset (MR) inputs. Each output Qn reflects the state of its corresponding Dn input, provided the setup and hold time requirements relative to the low-to-high clock (CP) transition are met. When MR is LOW, all outputs are forced LOW regardless of the clock and data inputs. Input clamping diodes are included, allowing input interfacing to voltages above VCC through current-limiting resistors.
