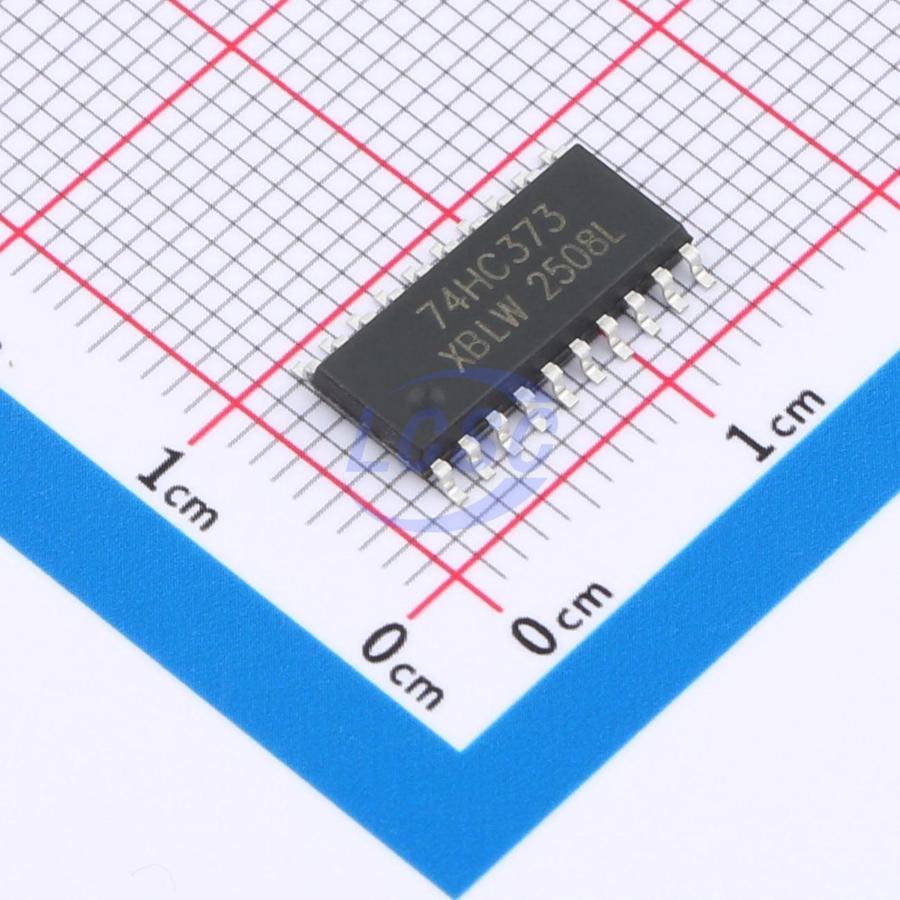

SN74HC373NSDTR(XBLW)
D Latch 2V~6V 8 15ns SOIC-20-208mil Latches RoHS
Octal D-type transparent latch; 3-state
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C47021211
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.49 | ₹112.45 |
| 50+ | ₹19.63 | ₹981.50 |
| 150+ | ₹18.42 | ₹2,763.00 |
| 500+ | ₹16.89 | ₹8,445.00 |
| 2,000+ | ₹16.22 | ₹32,440.00 |
| 4,000+ | ₹15.81 | ₹63,240.00 |
5 × ₹22.49
₹112.45
excl. GST
₹132.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC373NSDTR(XBLW)
₹112.45 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 5ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Hold Time
- 5ns
- Propagation Delay
- 15ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.509 g
Overview
The SN74HC373 is a octal D-type transparent latch with 3-state outputs. The device features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D -input changes. When LE is LoW the latches store the information that was present at the inputs a set -up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of Vcc
Key features
- 3-state non-inverting outputs for bus-oriented applications
- Common 3-state output enable input
- Specified from -40°C to +125°C
