lingxingic

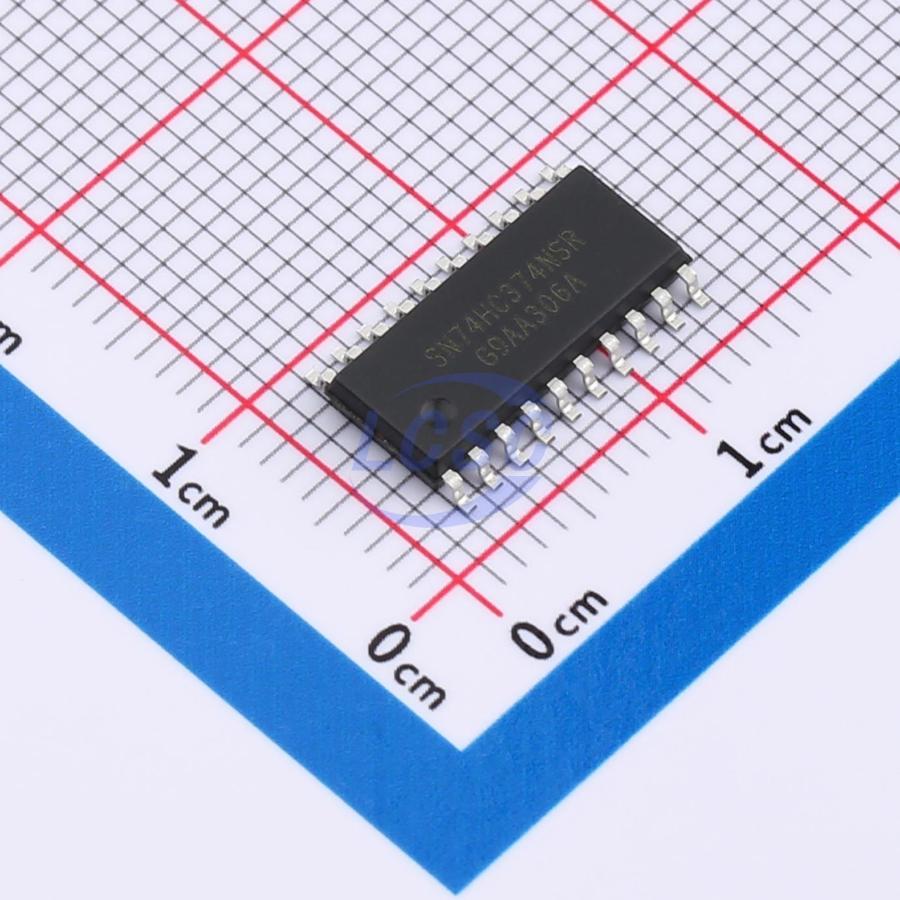

SN74HC374NSR(LX)

2V~6V 8 1 15ns@5V,15pF SOIC-20-208mil Flip Flops

SOIC-20-208milRoHSActive

8-bit rising-edge triggered D-type flip-flop with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC374NSR(LX)
Store part #: C22374064
Package / case: SOIC-20-208mil
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,290 in stock

#C22374064

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹29.10	₹145.50
50+	₹22.56	₹1,128.00
150+	₹19.76	₹2,964.00
500+	₹17.04	₹8,520.00
2,000+	₹15.48	₹30,960.00
4,000+	₹14.54	₹58,160.00

Quantity (min 5, multiples of 5)

5 × ₹29.10

₹145.50

excl. GST

₹171.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC374NSR(LX)

₹145.50 for 5 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Series: 74HC Series
Number of Elements: 1
Current - Output High(IOH): 7.8mA
Current - Output Low(IOL): 7.8mA
Setup Time: 4ns
Quiescent Current: 8uA
Hold Time: 2ns
Propagation Delay: 15ns@5V,15pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.6 g

Overview

The SN74HC/HCT374 is an 8-bit rising-edge-triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) input. The flip-flops store the state of their individual D inputs that meet the setup and hold time requirements. A high level on OE forces the outputs into a high-impedance state. Changes on OE do not affect the state of the flip-flops. Input clamping diodes are provided. This enables the use of current-limiting resistors to interface inputs to voltages exceeding VCC. The SN74HCT374 features reduced input threshold levels to allow direct interface with TTL logic levels.
