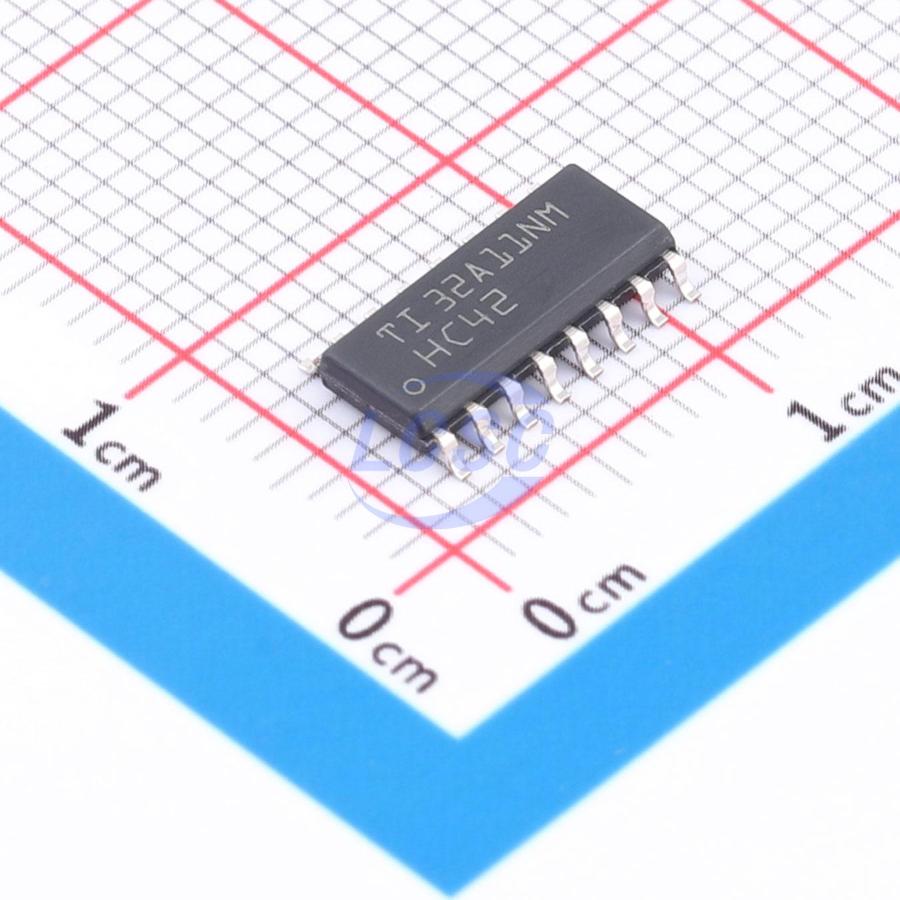

SN74HC42DR
4/10 2V~6V 80uA 38ns@4.5V,50pF SOIC-16 Signal Switches, Multiplexers, Decoders RoHS
SOIC-16ROHS3 CompliantActive
4-LINE TO 10-LINE DECODERS(1 of 10)
- Manufacturer
- TI
- Manufacturer part #
- SN74HC42DR
- Store part #
- C469858
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,558 in stock
#C469858
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.34 | ₹71.34 |
| 10+ | ₹60.94 | ₹609.40 |
| 30+ | ₹53.78 | ₹1,613.40 |
| 100+ | ₹47.71 | ₹4,771.00 |
| 500+ | ₹45.75 | ₹22,875.00 |
| 1,000+ | ₹44.66 | ₹44,660.00 |
1 × ₹71.34
₹71.34
excl. GST
₹84.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC42DR
₹71.34 for 1 + GST
Specifications
- Type
- Decoder
- Series
- 74HC
- Number of Channels
- 4/10
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 80uA
- Current - Output High(IOH)
- 25mA
- Propagation Delay
- 38ns@4.5V,50pF
- Current - Output Low(IOL)
- 25mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.512 g
Overview
Key features
- Wide Operating Voltage Range of δ₂V for all to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 80 - μA Max ICC
- Typical propagation delay time = 14 ns
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Full Decoding of Input Logic
- All Outputs Are High for Invalid BCD Conditions
- Also for Applications as 3 - Line to 8 - Line Decoders
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74HC42SA16.TR#C51940077Wuxi I-core Elec · SOP-16 | Wuxi I-core Elec | SOP-16 | 95 | ₹39.88 · 95 in stock | View |
 | SN74HC145DR(LX)#C22436991lingxingic · SOP-16 | lingxingic | SOP-16 | 275 | ₹30.35 · 275 in stock | View |
 | CD74HC42M#C1547229TI · SOIC-16 | TI | SOIC-16 | 33 | ₹242.29 · 33 in stock | View |
 | SN74LS145DR(LX)#C22374095lingxingic · SOP-16 | lingxingic | SOP-16 | 161 | ₹49.82 · 161 in stock | View |
 | 74HC42D,653#C547054Nexperia · SO-16 | Nexperia | SO-16 | On request | Price on request | Quote |
