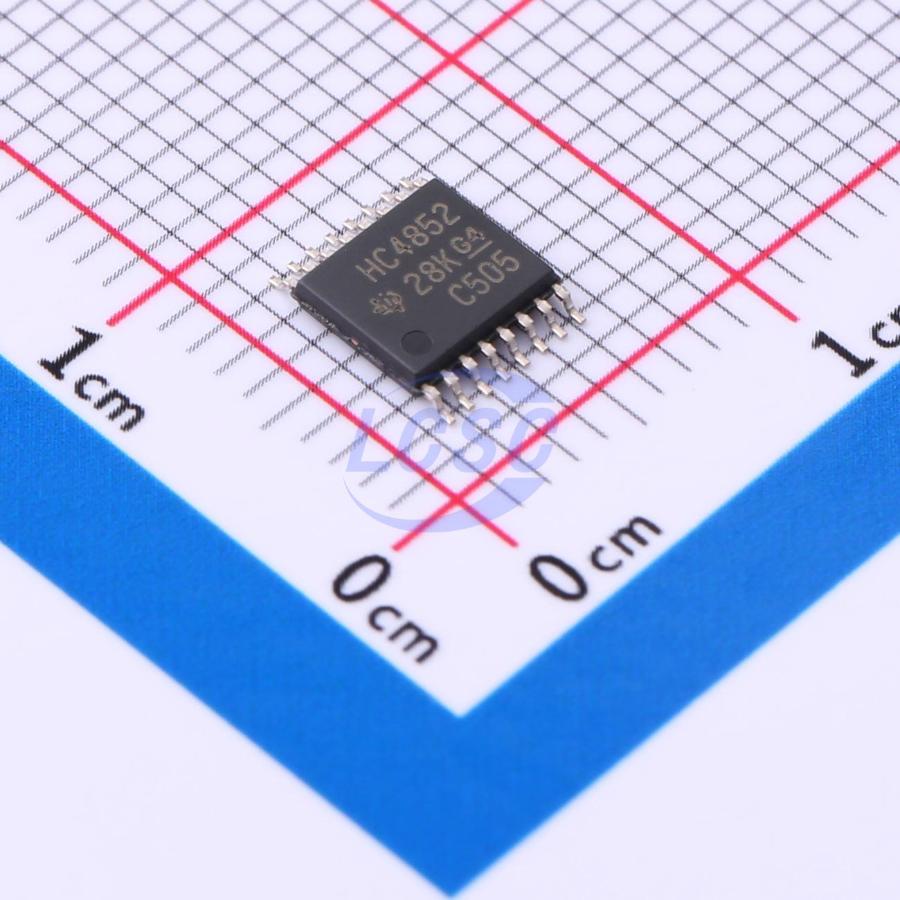

SN74HC4852PWR
195Ω 4 2V~6V TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS
TSSOP-16ROHS3 CompliantActive
DUAL 4-TO-1 CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER WITH INJECTION-CURRENT EFFECT CONTROL
- Manufacturer
- TI
- Manufacturer part #
- SN74HC4852PWR
- Store part #
- C2673142
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,941 in stock
#C2673142
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.07 | ₹69.07 |
| 10+ | ₹54.31 | ₹543.10 |
| 30+ | ₹47.14 | ₹1,414.20 |
| 100+ | ₹40.62 | ₹4,062.00 |
| 500+ | ₹38.88 | ₹19,440.00 |
| 1,000+ | ₹37.80 | ₹37,800.00 |
1 × ₹69.07
₹69.07
excl. GST
₹81.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC4852PWR
₹69.07 for 1 + GST
Specifications
- Features
- Fault protection
- Operating Temperature
- -40℃~+125℃
- Ron
- 195Ω
- Number of Channels
- 4
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 12.6ns
- Con
- 6.7pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
This dual 4-to-1 CMOS analog multiplexer/demultiplexer is pin compatible with the 4052 function and also features injection-current effect control. This feature has excellent value in automotive applications where voltages in excess of normal supply voltages are common. The injection-current effect control allows signals at disabled analog input channels to exceed the supply voltage without affecting the signal of the enabled analog channel. This eliminates the need for external diode/resistor networks typically used to keep the analog channel signals within the supply voltage range.
Applications
- automotive applications
Key features
- Injection Current Cross−Coupling <1mV/mA
- Low Crosstalk Between Switches
- Pin Compatible with SN74HC4052, SN74LV4052A, and CD4052B
- 2-V to 6-V VCC Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NLVHC4052ADTR2G#C904959onsemi · TSSOP-16 | onsemi | TSSOP-16 | 1 | ₹58.15 · 1 in stock | View |
 | SN74LV4052APWR#C8142TI · TSSOP-16 | TI | TSSOP-16 | 7,555 | ₹55.54 · 7,555 in stock | View |
| RMUX1309XTSS16#C54300527RUNIC · TSSOP-16 | RUNIC | TSSOP-16 | 4,000 | ₹23.11 · 4,000 in stock | View | |
 | ADG709BRUZ-REEL7#C206785ADI · TSSOP-16 | ADI | TSSOP-16 | 27 | ₹749.10 · 27 in stock | View |
 | MC74LVX4052DTR2G#C904137onsemi · TSSOP-16 | onsemi | TSSOP-16 | 80 | ₹117.73 · 80 in stock | View |
