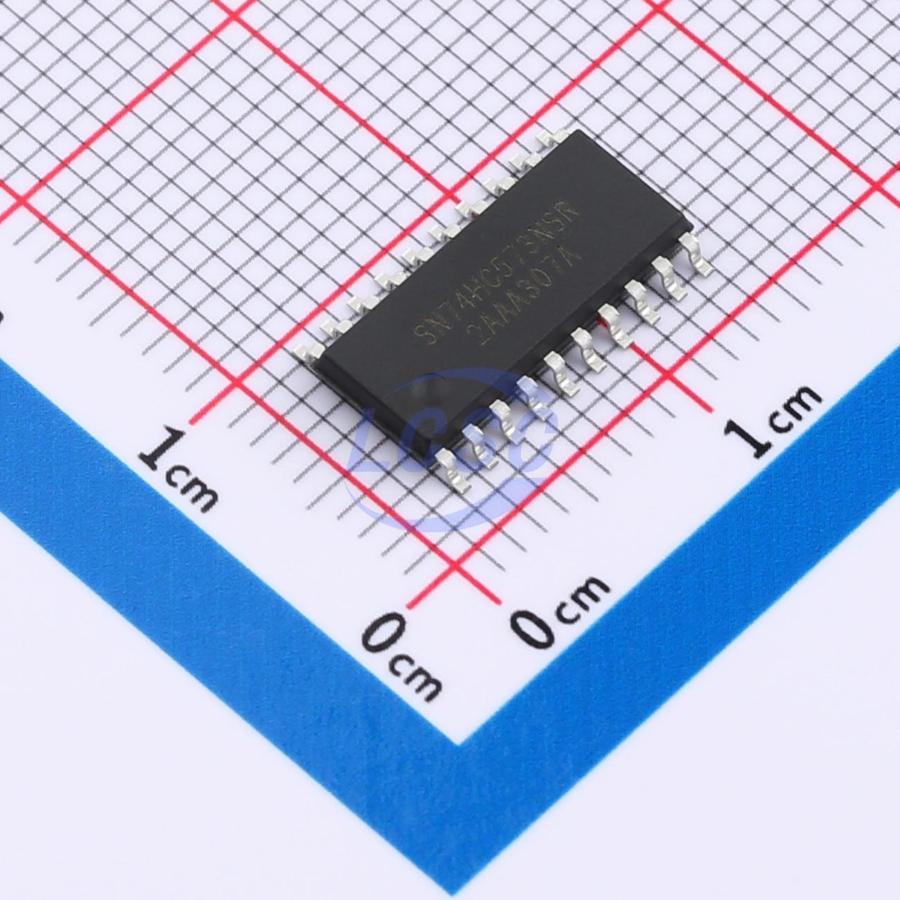

SN74HC573NSR(LX)
D Latch 2V~6V 8 26ns SOIC-20-208mil Latches
8-bit D-type latch with three-state control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC573NSR(LX)
- Store part #
- C22374073
- Package / case
- SOIC-20-208mil
- Category
- Latches
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C22374073
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.30 | ₹166.50 |
| 50+ | ₹25.98 | ₹1,299.00 |
| 150+ | ₹22.83 | ₹3,424.50 |
| 500+ | ₹18.93 | ₹9,465.00 |
| 2,000+ | ₹17.19 | ₹34,380.00 |
| 4,000+ | ₹16.14 | ₹64,560.00 |
5 × ₹33.30
₹166.50
excl. GST
₹196.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC573NSR(LX)
₹166.50 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Tri-State
- Setup Time
- 3ns
- Number of Gates
- 8
- Current - Output High(IOH)
- 7.8mA
- Hold Time
- 1ns
- Propagation Delay
- 26ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.56 g
Overview
The SN74HC/HCT573 is an 8-bit D-type latch with 3-state outputs. The device features a latch enable (LE) and an output enable (OE). When LE is high, data at the inputs enters the latches. In this condition, the latches are transparent — each latch output changes whenever its corresponding D input changes. When LE is low, the latches store the input information that was present one setup time before the falling edge of LE. A high level on OE forces the outputs into a high-impedance state. Operation of the OE input does not affect the state of the latches. The inputs are clamped with diodes to allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: SN74HC573: CMOS; SN74HCT573: TTL
- Inputs and outputs on opposite sides of the package for easy microprocessor interfacing
- 3-state non-inverting outputs for bus applications
- Common 3-state output enable input
- Operating temperature range: -40°C ~ +125°C
- Package: DIP20/SOP20/TSSOP20/SOP(M)20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC373NSR(LX)#C22374060lingxingic · SOIC-20-208mil | lingxingic | SOIC-20-208mil | 1,765 | ₹35.69 · 1,765 in stock | View |
