lingxingic

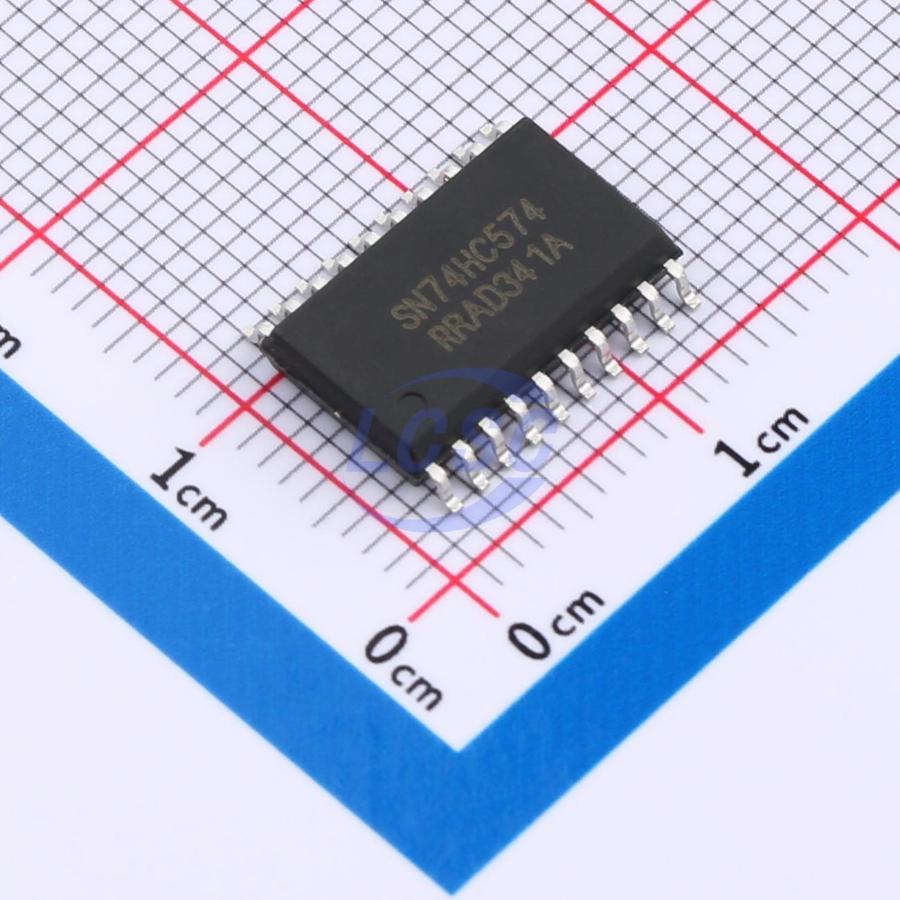

SN74HC574D(LX)

2V~6V 8 1 14ns@5V,15pF SOP-20-300mil Flip Flops

SOP-20-300milRoHSActive

8-bit rising-edge triggered D-type flip-flop with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC574D(LX)
Store part #: C22374074
Package / case: SOP-20-300mil
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,035 in stock

#C22374074

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹26.75	₹133.75
50+	₹22.30	₹1,115.00
150+	₹20.38	₹3,057.00
500+	₹18.00	₹9,000.00
2,000+	₹16.56	₹33,120.00
4,000+	₹15.92	₹63,680.00

Quantity (min 5, multiples of 5)

5 × ₹26.75

₹133.75

excl. GST

₹157.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC574D(LX)

₹133.75 for 5 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Series: 74HC Series
Number of Elements: 1
Current - Output High(IOH): 7.8mA
Current - Output Low(IOL): 7.8mA
Setup Time: 12ns
Quiescent Current: 8uA
Hold Time: 5ns
Propagation Delay: 14ns@5V,15pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.813 g

Overview

SN74HC/HCT574 is an 8-bit positive-edge-triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) input and an output enable (OE) input. When OE is HIGH, the outputs are in a high-impedance state. Changes on the OE input do not affect the state of the flip-flops.
