XBLW

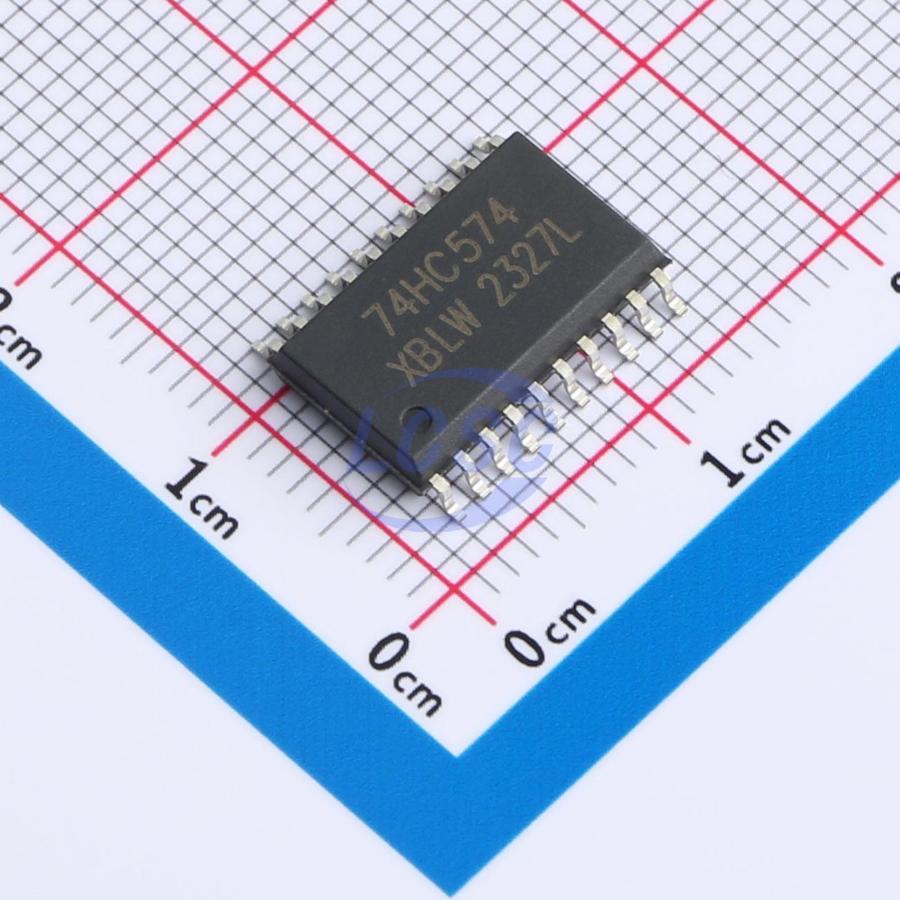

SN74HC574DTR(XBLW)

2V~6V 8 1 17ns@4.5V,50pF SOP-20 Flip Flops RoHS

SOP-20ROHS CompliantActive

Octal D-type flip-flop; positive edge-trigger; 3-state

Manufacturer: XBLW
Manufacturer part #: SN74HC574DTR(XBLW)
Store part #: C18723529
Package / case: SOP-20
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,760 in stock

#C18723529

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹27.73	₹138.65
50+	₹21.50	₹1,075.00
150+	₹18.83	₹2,824.50
500+	₹15.49	₹7,745.00
2,000+	₹14.01	₹28,020.00
4,000+	₹13.11	₹52,440.00

Quantity (min 5, multiples of 5)

5 × ₹27.73

₹138.65

excl. GST

₹163.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74HC574DTR(XBLW)

₹138.65 for 5 + GST

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Tri-State
Operating Temperature: -40℃~+105℃
Series: 74HC Series
Number of Elements: 1
Current - Output High(IOH): 6mA
Current - Output Low(IOL): 7.8mA
Setup Time: 60ns;12ns;10ns
Quiescent Current: 8uA
Hold Time: 5ns
Propagation Delay: 17ns@4.5V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.773 g

Overview

The SN74HC574 is an octal positive-edge triggered D-type flip-flop, with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops.
