lingxingic

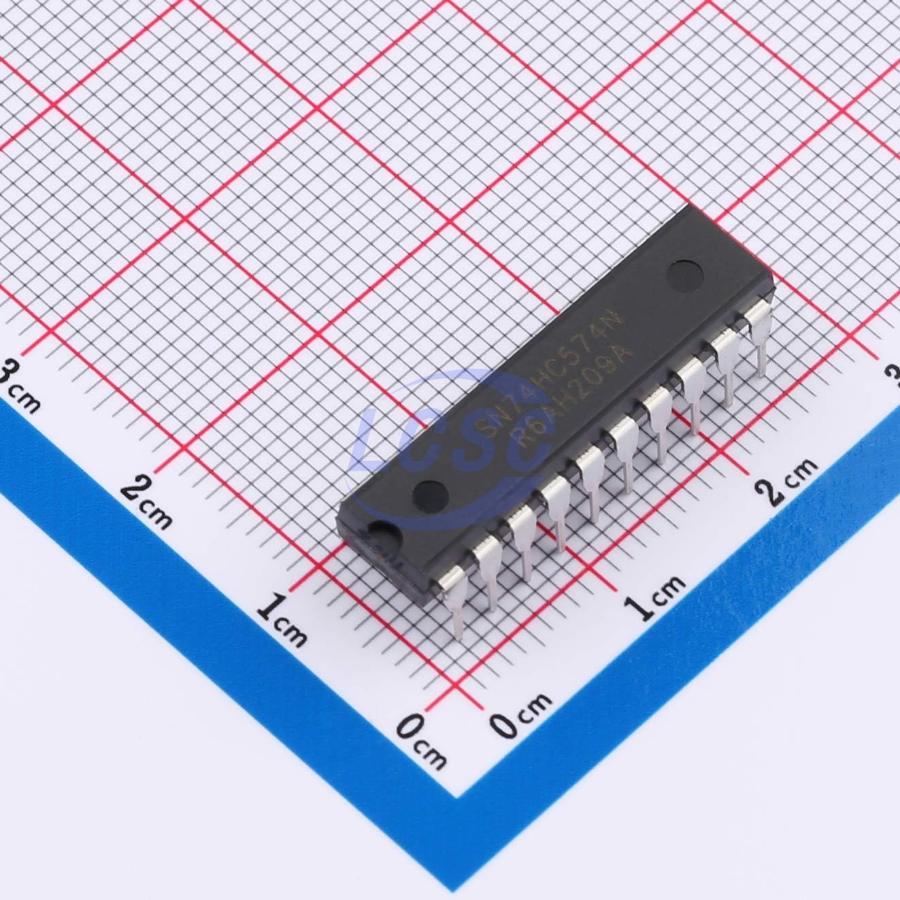

SN74HC574N(LX)

2V~6V 8 1 14ns@5V,15pF DIP-20 Flip Flops

DIP-20RoHSActive

8-bit rising-edge triggered D-type flip-flop with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HC574N(LX)
Store part #: C22374077
Package / case: DIP-20
Category: Flip Flops
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,080 in stock

#C22374077

Stock & price checked 28 h ago

Quantity	Unit price	Pack price
6+	₹31.82	₹190.92
60+	₹24.98	₹1,498.80
180+	₹22.05	₹3,969.00
594+	₹18.40	₹10,929.60
2,880+	₹16.78	₹48,326.40
5,760+	₹15.80	₹91,008.00

Quantity (min 6, multiples of 6)

6 × ₹31.82

₹190.92

excl. GST

₹225.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 18 per tube

SN74HC574N(LX)

₹190.92 for 6 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 2V~6V
Number of Bits per Element: 8
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Series: 74HC Series
Number of Elements: 1
Current - Output High(IOH): 7.8mA
Current - Output Low(IOL): 7.8mA
Setup Time: 2ns
Quiescent Current: 8uA
Hold Time: 0ns
Propagation Delay: 14ns@5V,15pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 18 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 2.316 g

Overview

SN74HC/HCT574 is an 8-bit positive-edge-triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) input and an output enable (OE) input. When OE is HIGH, the outputs are in a high-impedance state. Changes on the OE input do not affect the state of the flip-flops.
