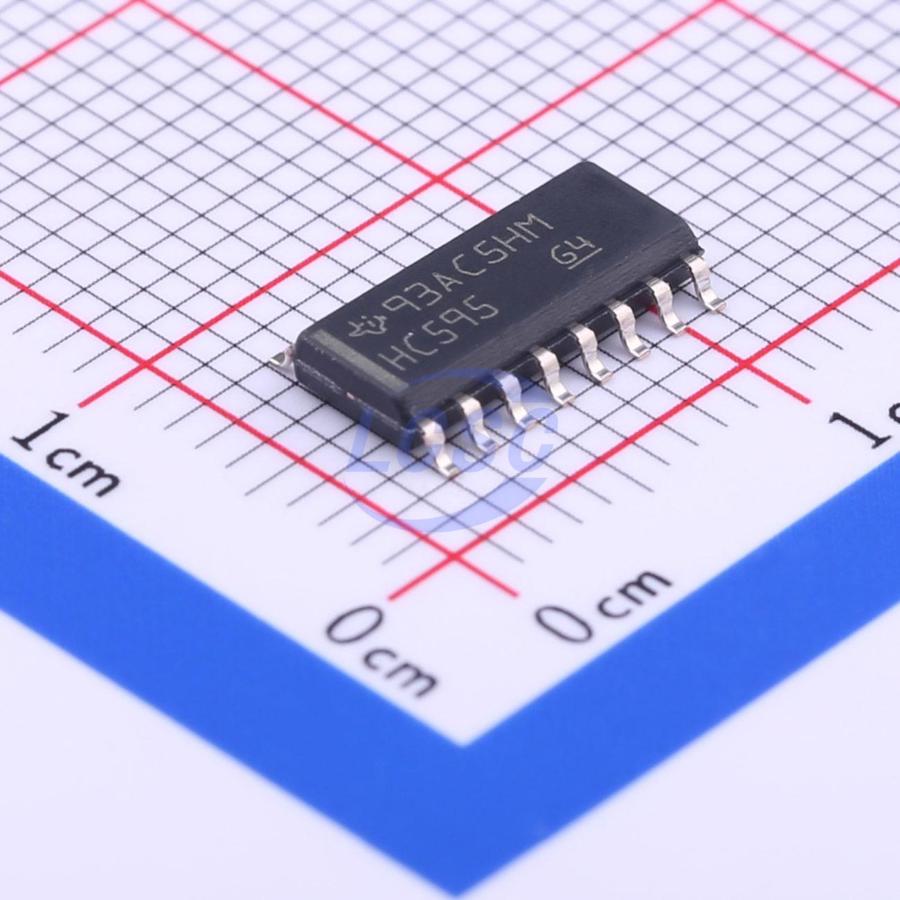

SN74HC595DR
2V~6V 1 6mA 26ns@6V,50pF Serial-to-Serial or Parallel SOIC-16 Shift Registers RoHS
PopularSOIC-16ROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74HC595DR
- Store part #
- C10092
- Package / case
- SOIC-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,98,335 in stock
#C10092
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.83 | ₹119.15 |
| 50+ | ₹18.20 | ₹910.00 |
| 150+ | ₹15.47 | ₹2,320.50 |
| 500+ | ₹13.02 | ₹6,510.00 |
| 2,500+ | ₹12.34 | ₹30,850.00 |
| 5,000+ | ₹11.93 | ₹59,650.00 |
5 × ₹23.83
₹119.15
excl. GST
₹140.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC595DR
₹119.15 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Number of Elements
- 1
- Output Current
- 6mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 26ns@6V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.318 g
Overview
The SNx4HC595 devices contain an 8- bit, serial- in, parallel- out shift register that feeds an 8- bit D- type storage register. The storage register has parallel 3- state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output- enable (OE) input is high, the outputs are in the high- impedance state.
Applications
- Network Switches
- Power Infrastructure
- LED Displays
- Servers
Key features
- 8-Bit Serial-In, Parallel-Out Shift
- Wide Operating Voltage Range of 2 V to 6 V
- High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
- Low Power Consumption: 80 μA (Maximum)
- I(CC) φ(pd) = 13 ns (Typical)
- ±6 mA Output Drive at 5 V
- Low Input Current: 1 μA (Maximum)
- Shift Register Has Direct Clear
- On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
