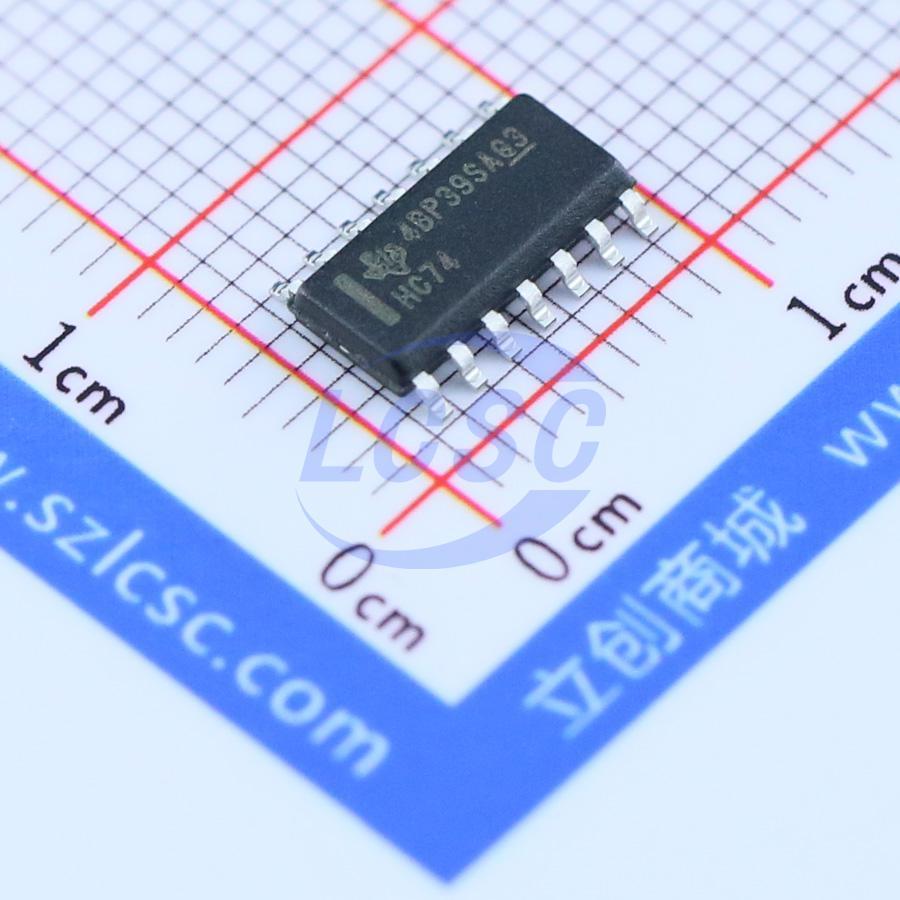

SN74HC74DR
2V~6V 1 2 15ns@6V,50pF SOIC-14 Flip Flops RoHS
Dual D-Type Positive-Edge-Triggered Flip-Flops with Clear and Preset
- Manufacturer
- TI
- Manufacturer part #
- SN74HC74DR
- Store part #
- C6762
- Package / case
- SOIC-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,015 in stock
#C6762
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.55 | ₹157.75 |
| 50+ | ₹25.12 | ₹1,256.00 |
| 150+ | ₹22.37 | ₹3,355.50 |
| 500+ | ₹18.93 | ₹9,465.00 |
| 2,500+ | ₹15.85 | ₹39,625.00 |
| 5,000+ | ₹14.94 | ₹74,700.00 |
5 × ₹31.55
₹157.75
excl. GST
₹186.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC74DR
₹157.75 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+85℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
- Setup Time
- 25ns
- Quiescent Current
- 4uA
- Hold Time
- 0ns
- Propagation Delay
- 15ns@6V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The HC74 devices contain two independent D-type positive-edge-triggered flip-flops. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements are transferred to the outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of CLK. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 40 - μA Max ICC
- Typical tp(d) = 15 ns
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC74QDRG4Q1#C1849448TI · SOIC-14 | TI | SOIC-14 | 89 | ₹119.90 · 89 in stock | View |
 | MM74HC74AMX#C7589onsemi · SOIC-14 | onsemi | SOIC-14 | 250 | ₹86.64 · 250 in stock | View |
 | TC74HC74AF(EL,F)#C6342366TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 772 | ₹44.24 · 772 in stock | View |
 | CD74HC74M96#C484719TI · SOIC-14 | TI | SOIC-14 | 199 | ₹52.07 · 199 in stock | View |
 | 74HC74D,653#C27597Nexperia · SOIC-14 | Nexperia | SOIC-14 | 28,615 | ₹22.25 · 28,615 in stock | View |
