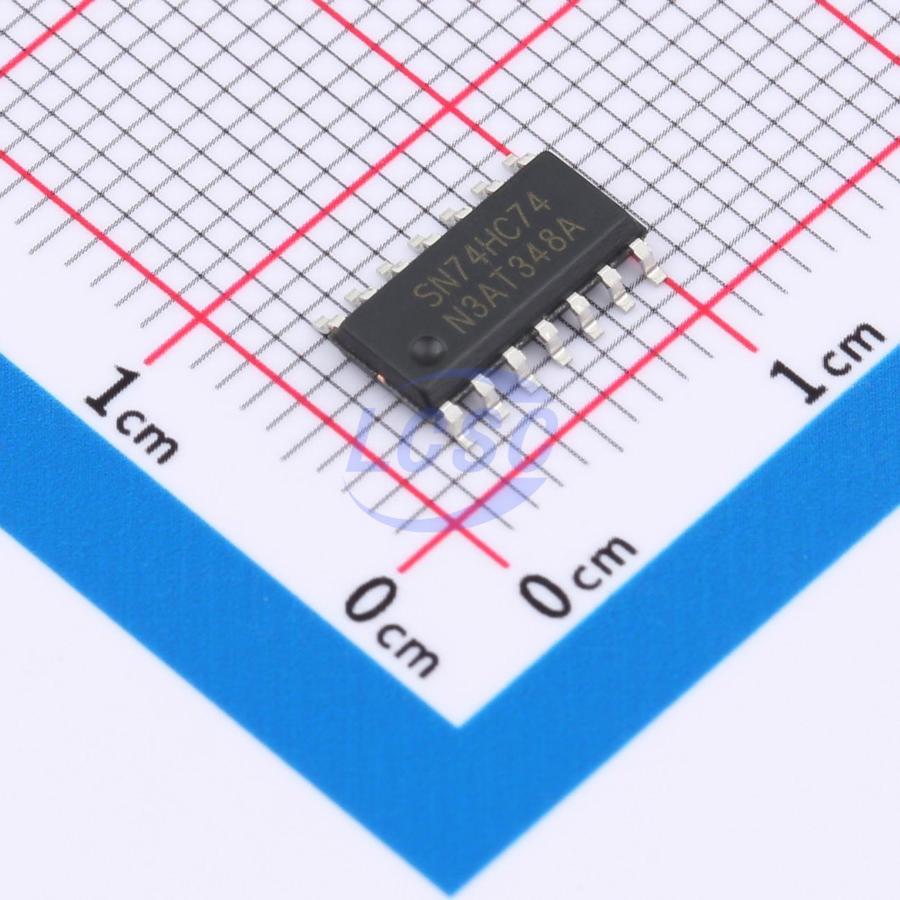

SN74HC74DR(LX)
2V~6V 1 2 43ns@6V,50pF SOP-14 Flip Flops
SN74HC/HCT74 (LX) Dual Positive-Edge-Triggered D-Type Flip-Flops with Preset and Clear
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC74DR(LX)
- Store part #
- C22436999
- Package / case
- SOP-14
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,755 in stock
#C22436999
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.95 | ₹54.75 |
| 50+ | ₹8.65 | ₹432.50 |
| 150+ | ₹7.50 | ₹1,125.00 |
| 500+ | ₹6.64 | ₹3,320.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 4,000+ | ₹5.61 | ₹22,440.00 |
5 × ₹10.95
₹54.75
excl. GST
₹64.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC74DR(LX)
₹54.75 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+105℃
- Series
- 74HC Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Setup Time
- 2ns
- Quiescent Current
- 40uA
- Hold Time
- -2ns
- Propagation Delay
- 43ns@6V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Overview
The SN74HC/HCT74 are dual positive-edge-triggered D-type flip-flops. They feature individual data (nD), clock (nCP), set (nSD), and reset (nRD) inputs, along with complementary nQ and nQ outputs. Data present at the nD input that meets the setup and hold time requirements relative to the low-to-high clock transition is stored in the flip-flop and appears at the nQ output. Input clamping diodes are included, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: SN74HC74: CMOS; SN74HCT74: TTL
- Symmetrical output impedance
- Low power consumption
- Balanced propagation delay
- Operating temperature range: -40°C ~ +125°C
- Package: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS74DR(LX)#C22466307lingxingic · SOP-14 | lingxingic | SOP-14 | 2,275 | ₹29.70 · 2,275 in stock | View |
