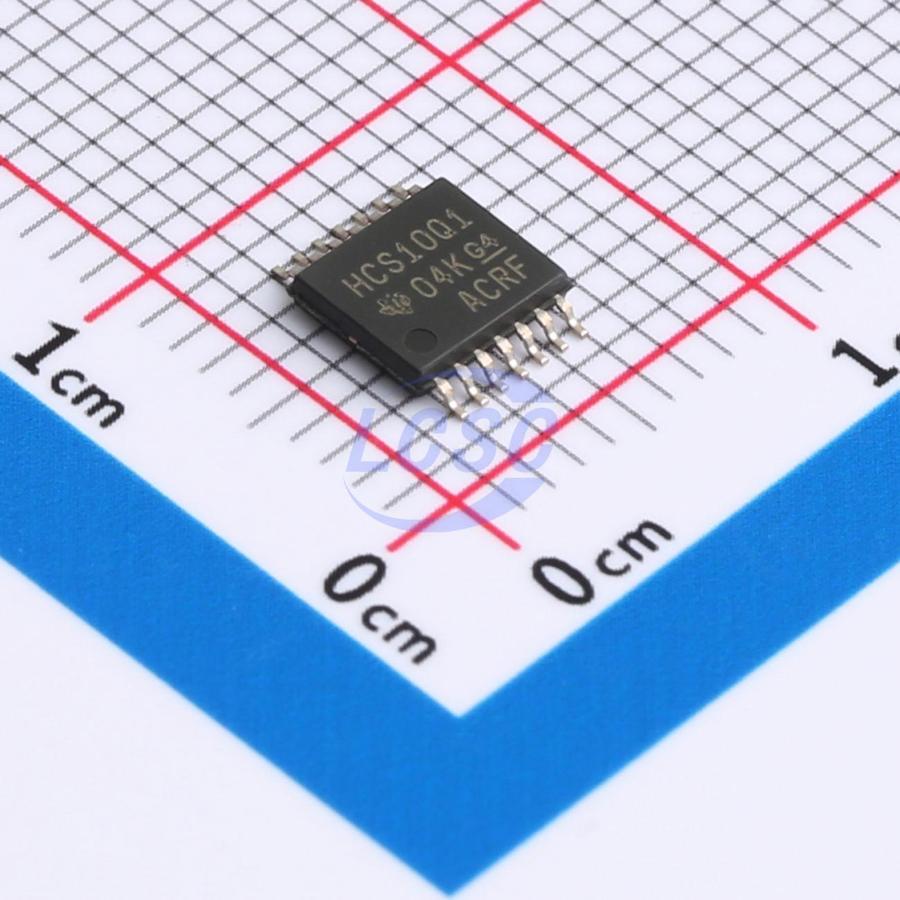

SN74HCS10QPWRQ1
NAND Gate IC 3 Channel TSSOP-14
TSSOP-14ROHS3 CompliantActive
Triple 3-input NAND gates with Schmitt-trigger inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS10QPWRQ1
- Store part #
- C2869229
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,095 in stock
#C2869229
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.92 | ₹90.92 |
| 10+ | ₹72.43 | ₹724.30 |
| 30+ | ₹63.08 | ₹1,892.40 |
| 100+ | ₹53.95 | ₹5,395.00 |
| 500+ | ₹48.29 | ₹24,145.00 |
| 1,000+ | ₹45.46 | ₹45,460.00 |
1 × ₹90.92
₹90.92
excl. GST
₹107.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCS10QPWRQ1
₹90.92 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCS Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 180mV~300mV;220mV~330mV
- Propagation Delay
- 16ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 1V~3V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4V~4.3V;5.4V~5.75V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 7.8mA
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.257 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74HCS10PW#C49188213EnergyMath · TSSOP-14L | EnergyMath | TSSOP-14L | 100 | ₹25.89 · 100 in stock | View |
 | SN74HC10QPWRG4Q1#C2866970TI · TSSOP-14 | TI | TSSOP-14 | 200 | ₹167.19 · 200 in stock | View |
 | SN74HC10QPWREP#C2877097TI · TSSOP-14 | TI | TSSOP-14 | 50 | ₹623.24 · 50 in stock | View |
 | 74HC10PW,118#C546531Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 246 | ₹66.47 · 246 in stock | View |
 | SN74HC10PWR#C155450TI · TSSOP-14 | TI | TSSOP-14 | 320 | ₹25.51 · 320 in stock | View |
