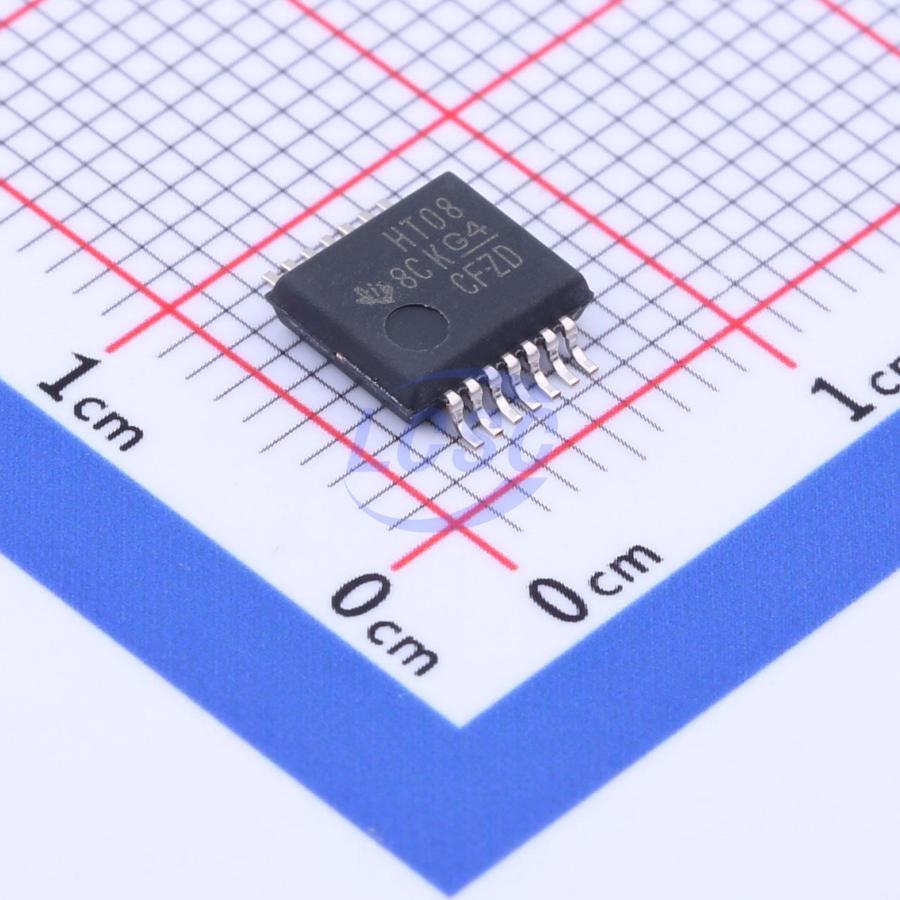

SN74HCT08DBR
AND Gate IC 4 Channel SSOP-14-208mil
SSOP-14-208milROHS3 CompliantActive
Quad 2-input positive AND gates
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT08DBR
- Store part #
- C2682070
- Package / case
- SSOP-14-208mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
994 in stock
#C2682070
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.57 | ₹53.57 |
| 10+ | ₹43.63 | ₹436.30 |
| 30+ | ₹38.66 | ₹1,159.80 |
| 100+ | ₹34.35 | ₹3,435.00 |
| 500+ | ₹33.05 | ₹16,525.00 |
| 1,000+ | ₹32.40 | ₹32,400.00 |
1 × ₹53.57
₹53.57
excl. GST
₹63.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SN74HCT08DBR
₹53.57 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 22ns@5.5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.84V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.567 g
Overview
These devices contain four independent 2-input AND gates. They perform the Boolean function Y = A · B in positive logic.
Key features
- Operating voltage range: 4.5V to 5.5V
- Output drives up to 10 LSTTL loads
- Low power consumption, ICC max = 20μA
- tpd typical = 13ns
- ±4mA output drive (at 5V)
- Low input current, max 1μA
- TTL-compatible inputs
