TIDatasheet (PDF)

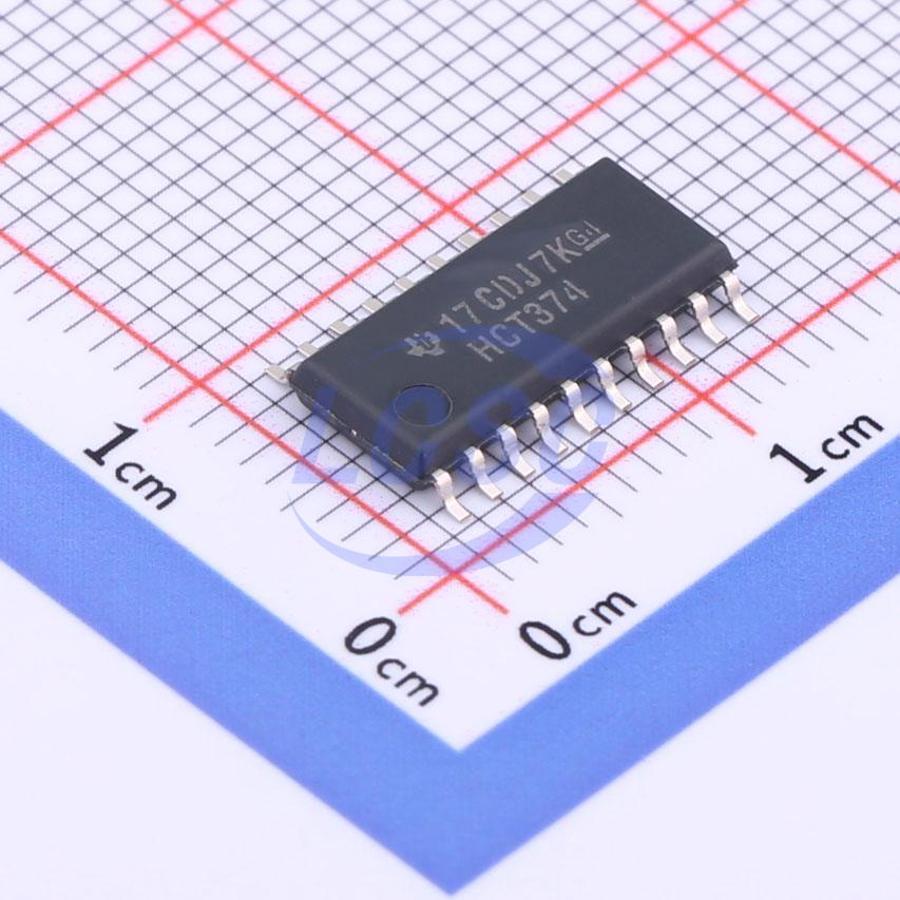

SN74HCT374NSR
4.5V~5.5V 8 1 41ns@5.5V,150pF SOP-20-208mil Flip Flops RoHS
SOP-20-208milROHS3 CompliantActive
8-bit edge-triggered D flip-flop with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT374NSR
- Store part #
- C2677828
- Package / case
- SOP-20-208mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,418 in stock
#C2677828
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.45 | ₹116.45 |
| 10+ | ₹95.81 | ₹958.10 |
| 30+ | ₹85.39 | ₹2,561.70 |
| 100+ | ₹75.17 | ₹7,517.00 |
| 500+ | ₹69.09 | ₹34,545.00 |
| 1,000+ | ₹66.04 | ₹66,040.00 |
1 × ₹116.45
₹116.45
excl. GST
₹137.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT374NSR
₹116.45 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Number of Bits per Element
- 8
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Series
- 74HCT Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 6mA
- Current - Output Low(IOL)
- 6mA
- Setup Time
- 23ns
- Quiescent Current
- 8uA
- Hold Time
- 10ns
- Propagation Delay
- 41ns@5.5V,150pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
Applications
- Buffer registers
- I/O ports
- Bidirectional bus drivers
- Working registers
Key features
- Operating voltage range: 4.5V to 5.5V
- High-current three-state true outputs drive up to 15 LSTTL loads
- Low power consumption, ICC max 80 μA
- tpd typical = 22 ns
- Output drive ±6 mA at 5V
- Low output current, max 1 μA
- TTL voltage-compatible inputs
- Eight D-type flip-flops in a single package
- Full parallel access to loads
