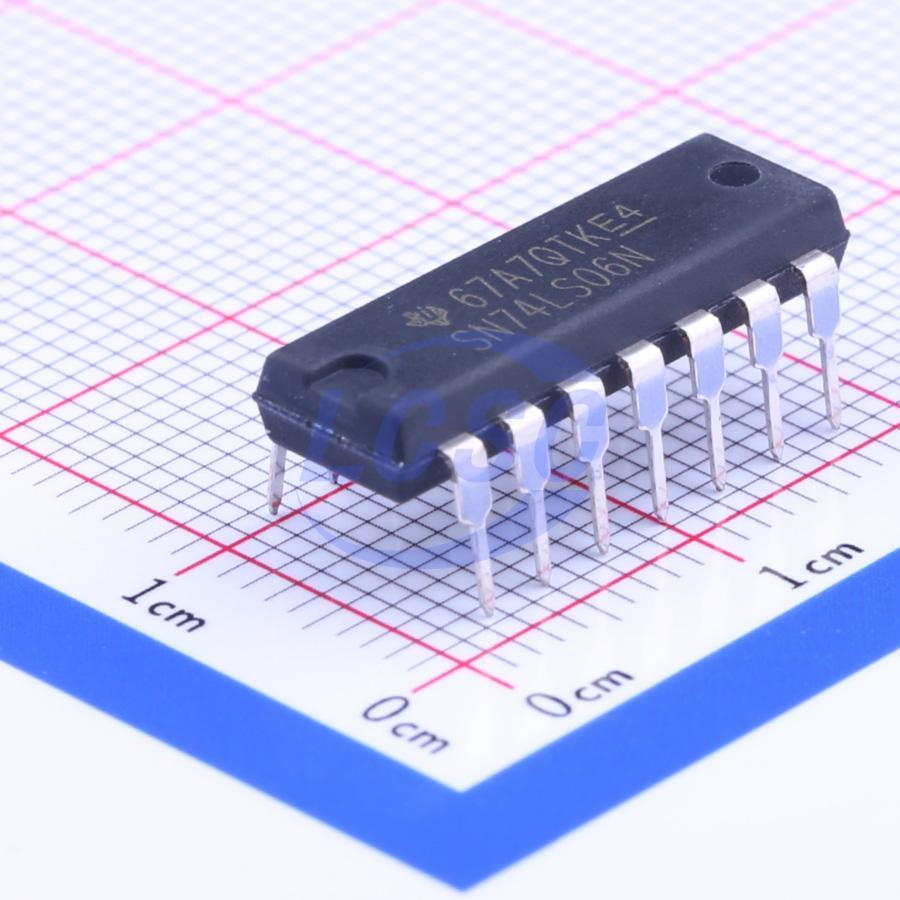

SN74LS06N
4.75V~5.25V 20ns@5V,15pF 6 DIP-14 Gates and Inverters RoHS
DIP-14ROHS3 CompliantActive
HEX INVERTER BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74LS06N
- Store part #
- C21803
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C21803
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹72.80 | ₹728.00 |
| 25+ | ₹62.80 | ₹1,570.00 |
| 100+ | ₹55.86 | ₹5,586.00 |
| 500+ | ₹51.73 | ₹25,865.00 |
| 1,000+ | ₹49.55 | ₹49,550.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS06N
₹86.92 for 1 + GST
Specifications
- Logic Family
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Output Logic Level - Low
- 700mV
- Propagation Delay
- 20ns@5V,15pF
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Current - Output High(IOH)
- 250uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 40mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.84 g
Overview
These devices are compatible with most TTL families. Inputs are diode-clamped to minimize transmission effects, which simplifies design. Typical power dissipation is 175 mW and average propagation delay time is 8 ns.
Applications
- High-level circuit interface
- Drive high-current loads
- Inverting buffer for TTL input drive
- Drive indicator lights and relays
Key features
- TTL-to-MOS level translation
- High sink current capability
- Input clamp diodes for simplified system design
- Open-collector output configuration
- Input compatible with most TTL family circuits
- Input diode clamping for reduced transmission-line effects
