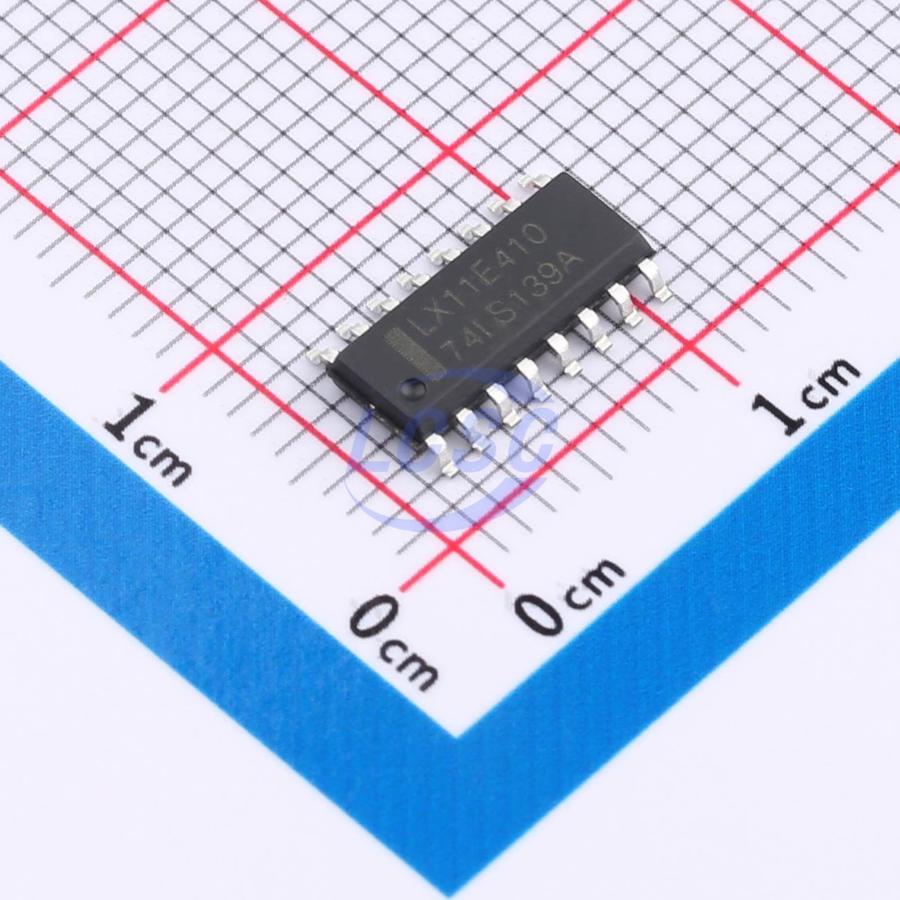

SN74LS139ADR(LX)
2/4 2V~6V 8uA 11ns@6.0V,50pF SOP-16 Signal Switches, Multiplexers, Decoders
SOP-16RoHSActive
Dual 2-to-4 Line Decoder/Demultiplexer
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS139ADR(LX)
- Store part #
- C22384797
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,365 in stock
#C22384797
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.12 | ₹120.60 |
| 50+ | ₹20.88 | ₹1,044.00 |
| 150+ | ₹19.48 | ₹2,922.00 |
| 500+ | ₹17.75 | ₹8,875.00 |
| 2,500+ | ₹16.98 | ₹42,450.00 |
| 5,000+ | ₹16.51 | ₹82,550.00 |
5 × ₹24.12
₹120.60
excl. GST
₹142.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS139ADR(LX)
₹120.60 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74LS
- Number of Channels
- 2/4
- Voltage - Supply
- 2V~6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 8uA
- Current - Output High(IOH)
- 5.2mA
- Propagation Delay
- 11ns@6.0V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
The SN74LS139 decodes two binary weighted address inputs (nA0, nA1) to four mutually exclusive outputs (nY0 to nY3). Each decoder features an enable input (nE). When nE is HIGH all outputs are forced HIGH. The enable input can be used as the data input for a 1-to-4 demultiplexer application. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Demultiplexing capability
- 2 independent 2-to-4 decoders
- Multifunction capability
- Suitable for memory decoding, data routing or code conversion
- Active LOW mutually exclusive outputs
- Specified from -40℃ to +125℃
- Packaging information: DIP16/SOP16/TSSOP16
