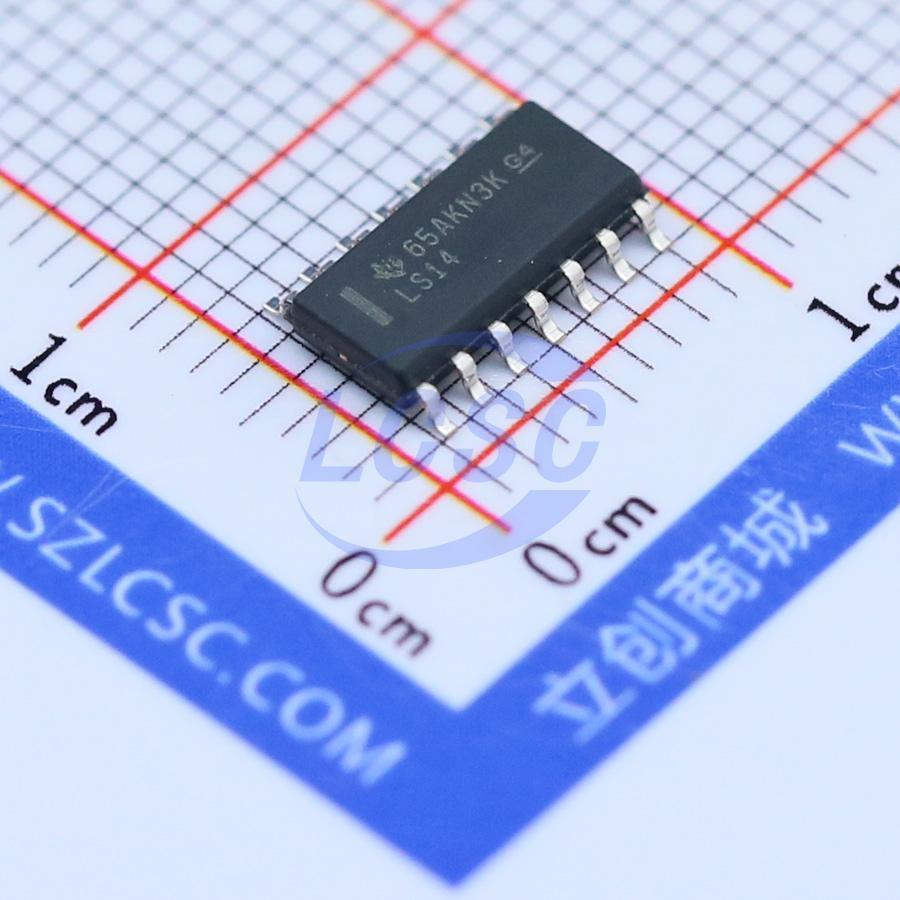

SN74LS14DR
Schmitt trigger 4.75V~5.25V 22ns@5V,15pF 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEXSCHMITT-TRIGGER INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74LS14DR
- Store part #
- C7739
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,158 in stock
#C7739
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.84 | ₹59.84 |
| 10+ | ₹45.21 | ₹452.10 |
| 30+ | ₹38.75 | ₹1,162.50 |
| 100+ | ₹30.79 | ₹3,079.00 |
| 500+ | ₹23.68 | ₹11,840.00 |
| 1,000+ | ₹21.53 | ₹21,530.00 |
1 × ₹59.84
₹59.84
excl. GST
₹70.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS14DR
₹59.84 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 22ns@5V,15pF
- Features
- Noise suppression function
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.9V
- Output Logic Level - High
- 2.7V~3.4V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter - free output signals.
Key features
- Compatible with very slow rise/fall edge inputs, improved line reception characteristics, strong noise immunity
- Schmitt trigger hysteresis — different input threshold levels for positive and negative transitions
- Temperature-compensated output, clean and jitter-free
- Maximum supply voltage VCC = 7V; maximum input voltage 14V = 5.5V, LS14 = 7V
- Storage temperature range: -65℃ ~ 150℃
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W
- Typical parameter test conditions: VCC = 5V, ambient temperature TA = 25℃
- Operating requirements: only one output may be short-circuited at a time; short-circuit duration must not exceed 1 second
