lingxingicDatasheet (PDF)

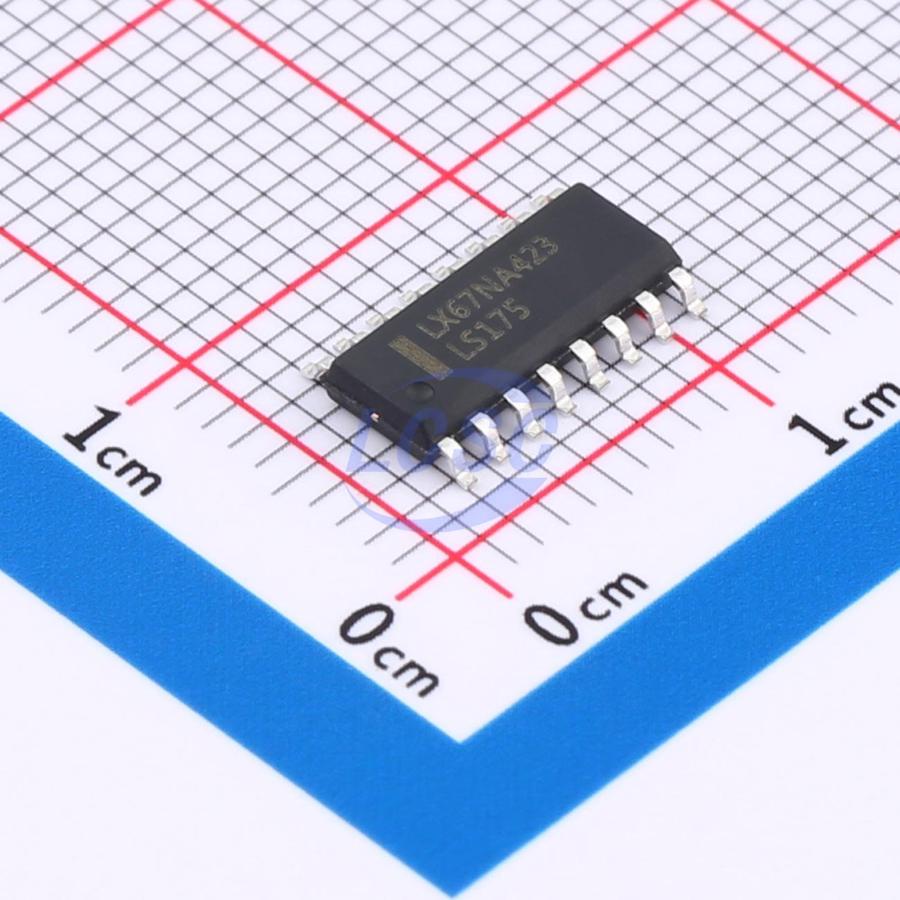

SN74LS175DR(LX)
2V~6V 4 1 30ns@6V,50pF SOP-16 Flip Flops
SOP-16RoHSActive
Quad D-type flip-flop with reset; positive-edge trigger
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS175DR(LX)
- Store part #
- C32710672
- Package / case
- SOP-16
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C32710672
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.16 | ₹205.80 |
| 50+ | ₹31.94 | ₹1,597.00 |
| 150+ | ₹27.98 | ₹4,197.00 |
| 500+ | ₹23.06 | ₹11,530.00 |
| 2,500+ | ₹20.86 | ₹52,150.00 |
| 5,000+ | ₹19.54 | ₹97,700.00 |
5 × ₹41.16
₹205.80
excl. GST
₹242.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS175DR(LX)
₹205.80 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 4
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74LS Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Setup Time
- 1ns
- Quiescent Current
- 1uA
- Hold Time
- 0ns
- Propagation Delay
- 30ns@6V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
The SN74LS175 is a quad positive- edge triggered D- type flip- flop with individual data inputs (Dn) and complementary outputs (Qn and Qn(overline)).
Key features
- Four edge-triggered D-type flip-flops
- Asynchronous master reset
- Specified from -40℃ to +125℃
- Packaging information: DIP16/SOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC175DR(LX)#C48533482lingxingic · SOP-16 | lingxingic | SOP-16 | 2,345 | ₹24.99 · 2,345 in stock | View |
 | CD40175BM(LX)#C22397207lingxingic · SOP-16 | lingxingic | SOP-16 | 265 | ₹41.99 · 265 in stock | View |
