lingxingic

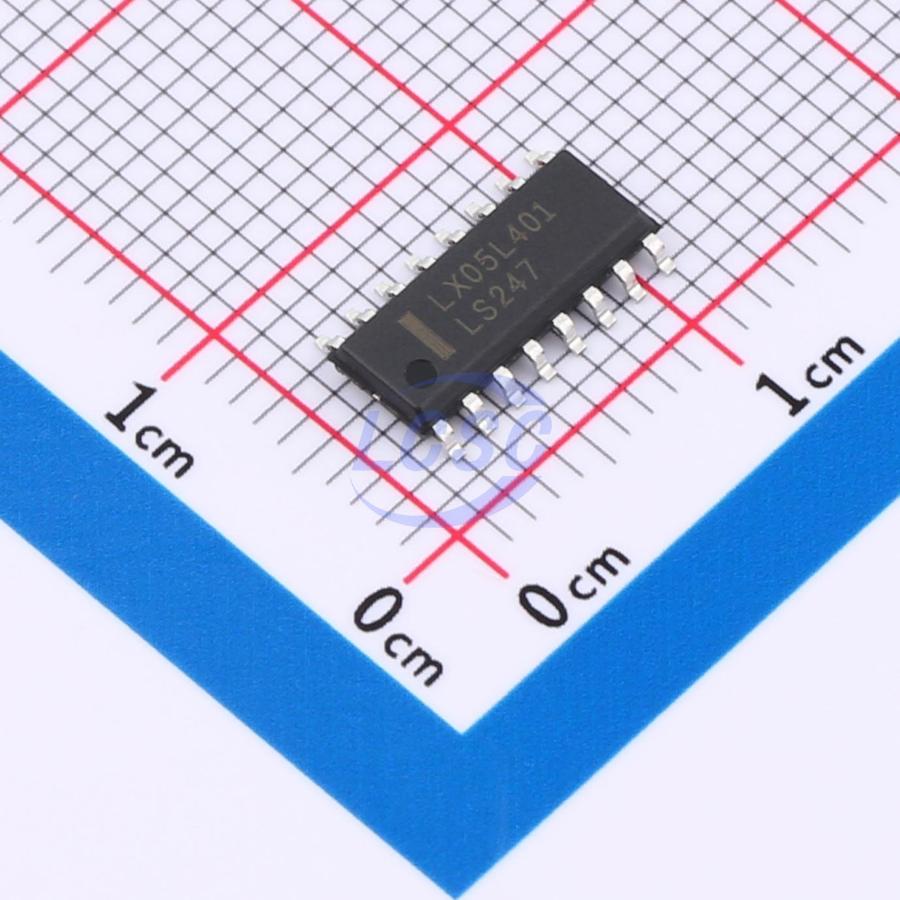

SN74LS247DR(LX)

2V~6V SOP-16 Display Drivers

SOP-16RoHSActive

BCD-to-Seven-Segment Decodes/Drivers

Manufacturer: lingxingic
Manufacturer part #: SN74LS247DR(LX)
Store part #: C22466290
Package / case: SOP-16
Category: Display Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,203 in stock

#C22466290

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹66.49	₹66.49
10+	₹52.68	₹526.80
30+	₹46.64	₹1,399.20
100+	₹39.29	₹3,929.00
500+	₹34.12	₹17,060.00
1,000+	₹32.18	₹32,180.00

Quantity (min 1)

1 × ₹66.49

₹66.49

excl. GST

₹78.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74LS247DR(LX)

₹66.49 for 1 + GST

Specifications

Voltage - Supply: 2V~6V
Configuration: 7 Segment x 1 Digit
Operating Temperature: -40℃~+125℃
Features: Lamp test function
Quiescent Current (Iq): 13mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.272 g

Overview

The SN74LS247 feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions.

Key features

Temperature range: -40℃ to +125℃
Package: DIP16/SOP16/TSSOP16
