XBLW

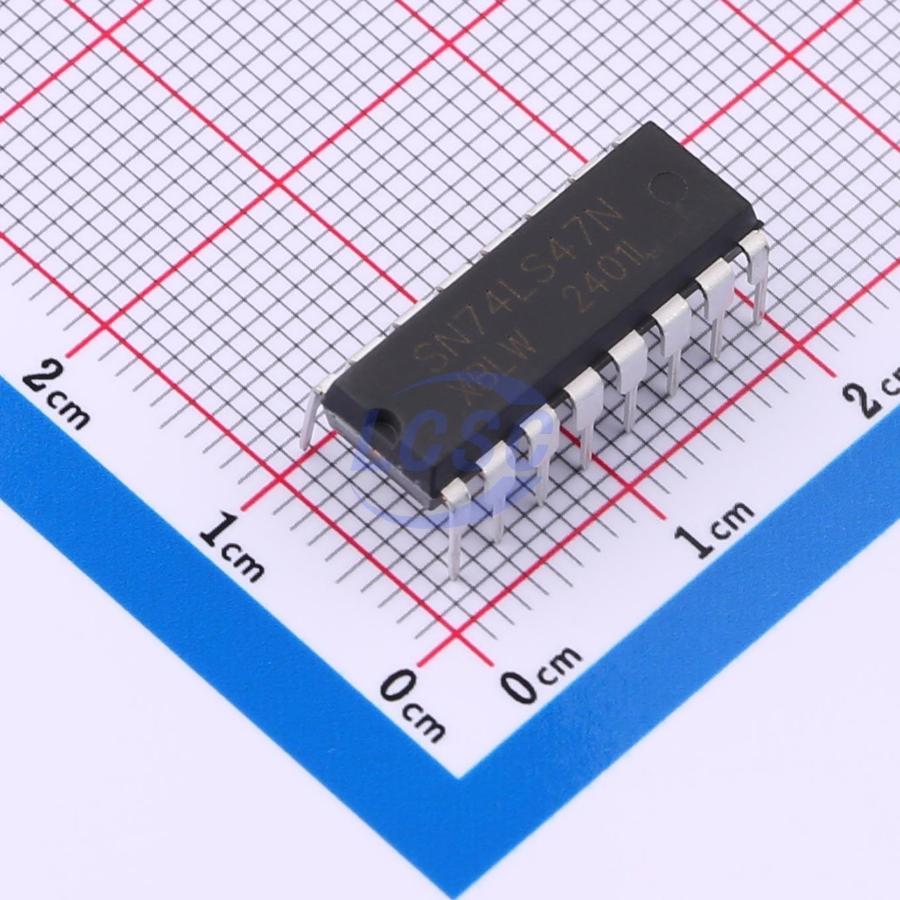

SN74LS47N(XBLW)

2V~6V DIP-16 Display Drivers RoHS

DIP-16ROHS CompliantActive

BCD-to-Seven-Segment Common anode LED Decodes/Drivers

Manufacturer: XBLW
Manufacturer part #: SN74LS47N(XBLW)
Store part #: C42395503
Package / case: DIP-16
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,045 in stock

#C42395503

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
5+	₹35.69	₹178.45
50+	₹26.91	₹1,345.50
150+	₹23.63	₹3,544.50
500+	₹19.53	₹9,765.00
2,500+	₹17.70	₹44,250.00
5,000+	₹16.62	₹83,100.00

Quantity (min 5, multiples of 5)

5 × ₹35.69

₹178.45

excl. GST

₹210.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

SN74LS47N(XBLW)

₹178.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 2V~6V
Configuration: 7 Segment x 1 Digit
Operating Temperature: -20℃~+85℃
Features: Lamp test function

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.604 g

Overview

The SN74LS47 feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions.

Key features

Supply voltage range: 2V to 6V
Temperature range: -20°C to +85°C
Packaging information: DIP-16/SOP-16/TSSOP-16
