lingxingicDatasheet (PDF)

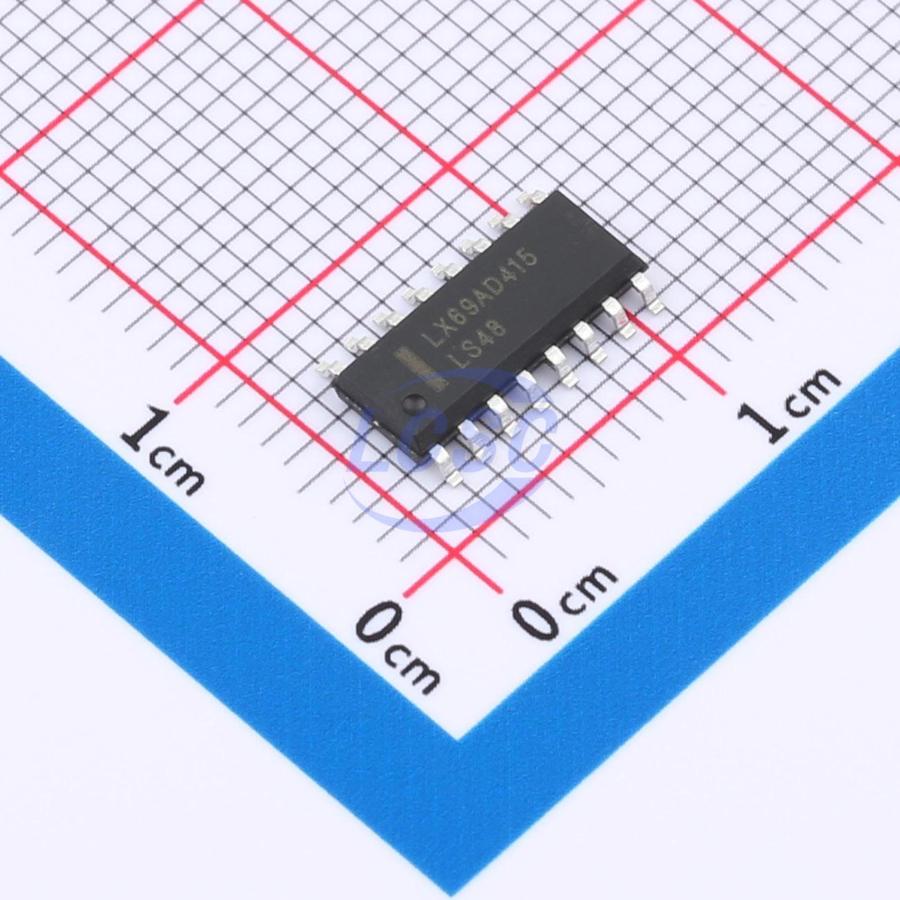

SN74LS48DR(LX)
2V~6V SOP-16 Display Drivers
SOP-16RoHSActive
BCD-to-Seven-Segment Common Cathode LED Decodes/Drivers
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS48DR(LX)
- Store part #
- C22466305
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,195 in stock
#C22466305
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.78 | ₹233.90 |
| 50+ | ₹36.40 | ₹1,820.00 |
| 150+ | ₹31.95 | ₹4,792.50 |
| 500+ | ₹26.39 | ₹13,195.00 |
| 2,500+ | ₹24.54 | ₹61,350.00 |
| 5,000+ | ₹23.06 | ₹1,15,300.00 |
5 × ₹46.78
₹233.90
excl. GST
₹276.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS48DR(LX)
₹233.90 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Configuration
- 7 Segment x 1 Digit
- Operating Temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Features
- Leading zero blanking;Trailing zero blanking;Lamp test function
- Quiescent Current (Iq)
- 13mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.277 g
Overview
The SN74LS48 feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions. The SN74LS48 incorporate automatic leading and/or trailing-edge zero-blanking control (RBI and RBO). Lamp test (LT) of these types may be performed at any time when the BI/RBO node is at a high level. The SN74LS48 contain an overriding blanking input (BI), which can be used to control the lamp intensity by pulsing or to inhibit the outputs.
Key features
- Internal pull-ups eliminate need for external resistors
- Lamp-test provision
- Leading/trailing zero suppression
- Specified from -40 °C to +125 °C
