XBLWDatasheet (PDF)

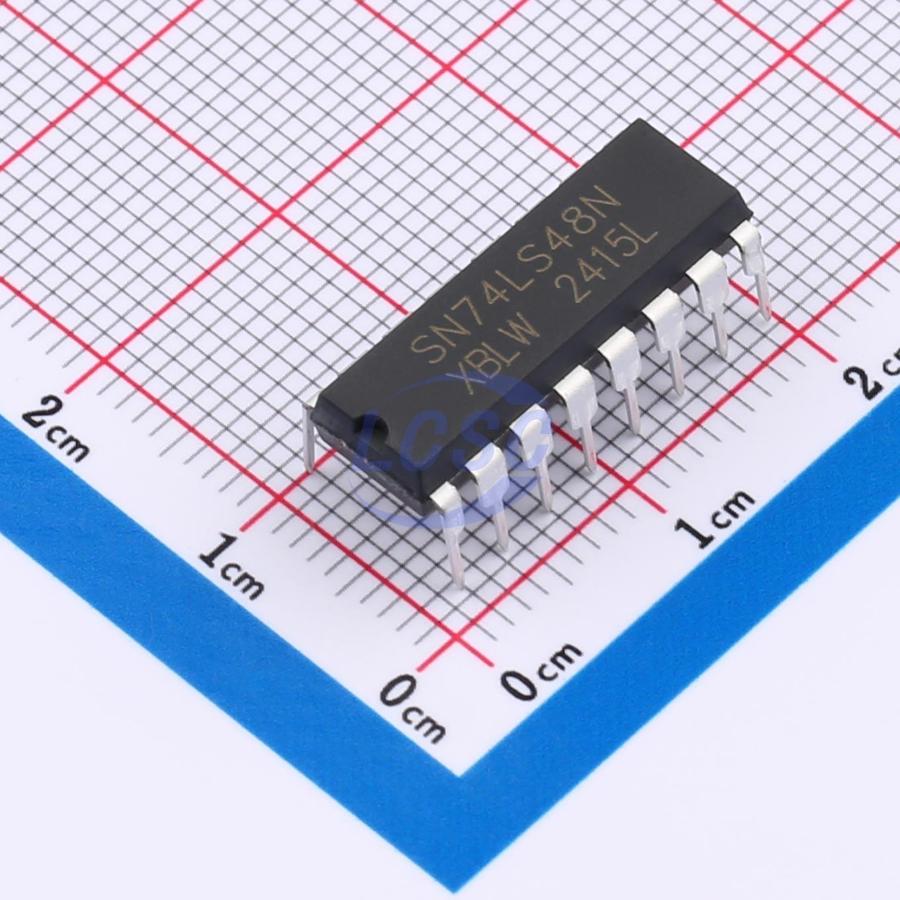

SN74LS48N(XBLW)
2V~6V DIP-16 Display Drivers RoHS
DIP-16ROHS CompliantActive
BCD-to-Seven-Segment Common Cathode
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS48N(XBLW)
- Store part #
- C42415785
- Package / case
- DIP-16
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C42415785
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.35 | ₹251.75 |
| 50+ | ₹39.54 | ₹1,977.00 |
| 150+ | ₹34.79 | ₹5,218.50 |
| 500+ | ₹28.96 | ₹14,480.00 |
| 2,500+ | ₹26.37 | ₹65,925.00 |
| 5,000+ | ₹24.86 | ₹1,24,300.00 |
5 × ₹50.35
₹251.75
excl. GST
₹297.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS48N(XBLW)
₹251.75 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Configuration
- 7 Segment x 1 Digit
- Operating Temperature
- -20℃~+85℃
- Pd - Power Dissipation
- 500mW
- Features
- Leading zero blanking;Trailing zero blanking;Lamp test function;Display blanking function
- Quiescent Current (Iq)
- 8uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.667 g
Overview
The SN74LS48 feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions. The SN74LS48 incorporate automatic leading and/or trailing-edge zero-blanking control (RBI and RBO). Lamp test (LT) of these types may be performed at any time when the BI/RBO node is at a high level. The SN74LS48 contain an overriding blanking input (BI), which can be used to control the lamp intensity by pulsing or to inhibit the outputs.
Key features
- CMOS Input levels
- Internal pull-ups eliminate need for external-resistors
- Lamp-test provision
- Leading/trailing zero suppression
- Specified from -20°C to +85°C
- Packaging information: DIP16/SOP16/TSSOP16
