lingxingicDatasheet (PDF)

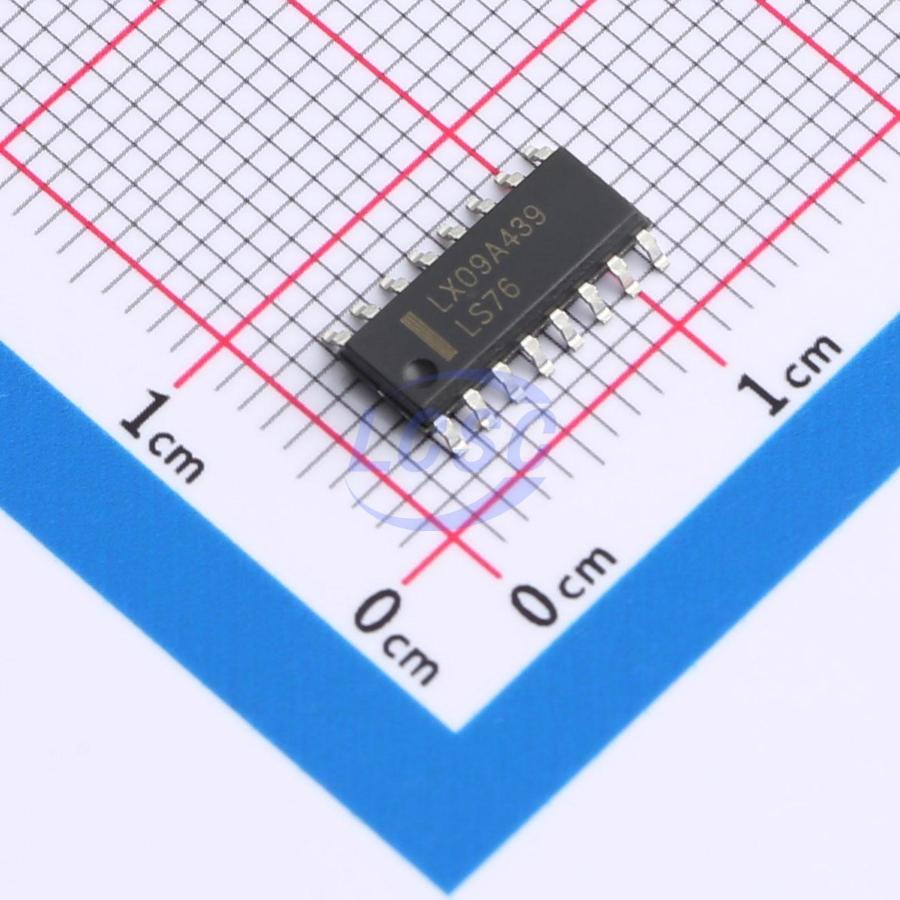

SN74LS76DR(LX)
2V~6V 1 2 46ns@4.5V,50pF SOP-16 Flip Flops
SOP-16RoHSActive
Dual JK Flip-Flop with Set and Reset; Negative-Edge Trigger
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS76DR(LX)
- Store part #
- C41432857
- Package / case
- SOP-16
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C41432857
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.29 | ₹166.45 |
| 50+ | ₹29.30 | ₹1,465.00 |
| 150+ | ₹27.60 | ₹4,140.00 |
| 500+ | ₹23.64 | ₹11,820.00 |
| 2,500+ | ₹22.69 | ₹56,725.00 |
| 5,000+ | ₹22.12 | ₹1,10,600.00 |
5 × ₹33.29
₹166.45
excl. GST
₹196.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS76DR(LX)
₹166.45 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+125℃
- Series
- 74LS Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 2
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
- Setup Time
- 30ns
- Quiescent Current
- 4uA
- Propagation Delay
- 46ns@4.5V,50pF
- Trigger Type
- Falling Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.272 g
Overview
The SN74LS76 is dual J-K Flip-Flops (with Preset and Clear).
Key features
- Supply voltage range: 2V to 6V
- Temperature range: -40 °C to +125 °C
- Packaging information: DIP16/SOP16
