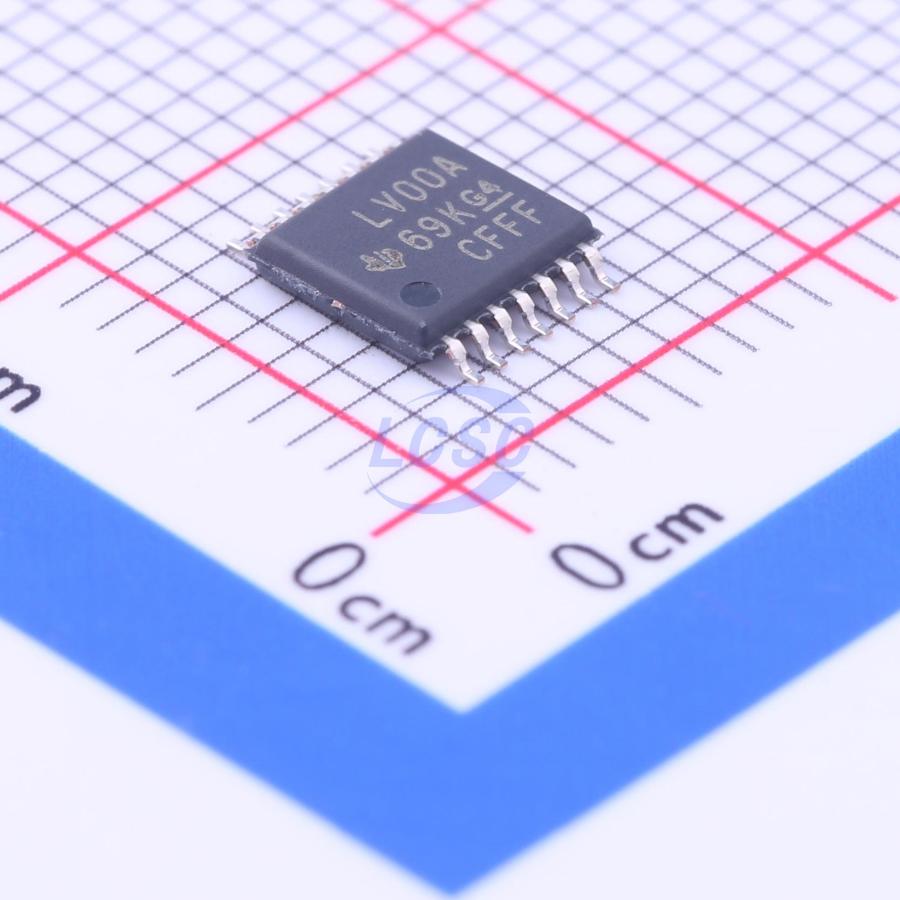

SN74LV00APWR
2V~5.5V 6.5ns@5V,50pF 20uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LV00APWR
- Store part #
- C7770
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,661 in stock
#C7770
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.94 | ₹60.94 |
| 10+ | ₹48.57 | ₹485.70 |
| 30+ | ₹43.37 | ₹1,301.10 |
| 100+ | ₹36.65 | ₹3,665.00 |
| 500+ | ₹32.31 | ₹16,155.00 |
| 1,000+ | ₹30.36 | ₹30,360.00 |
1 × ₹60.94
₹60.94
excl. GST
₹71.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV00APWR
₹60.94 for 1 + GST
Specifications
- Logic Family
- 74LV Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV;440mV;400mV;100mV
- Propagation Delay
- 6.5ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2V;2.48V;3.8V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 12mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
These quadruple 2-input positive-NAND gates are designed for 2-V to 5.5 V VCC operation. The ’LV00A devices perform the Boolean function Y = A·B or Y = A + B in positive logic. These devices are fully specified for partial-power-down applications using IOZ#. The IOZ circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
Key features
- 2-V to 5.5-V VCC Operation
- Max tpd of 6.5 ns at 5 V
- Typical V0LP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25°C
- Typical V0HV (Output V0H Undershoot) > 2.3 V at VCC = 3.3V, TA = 25°C
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
