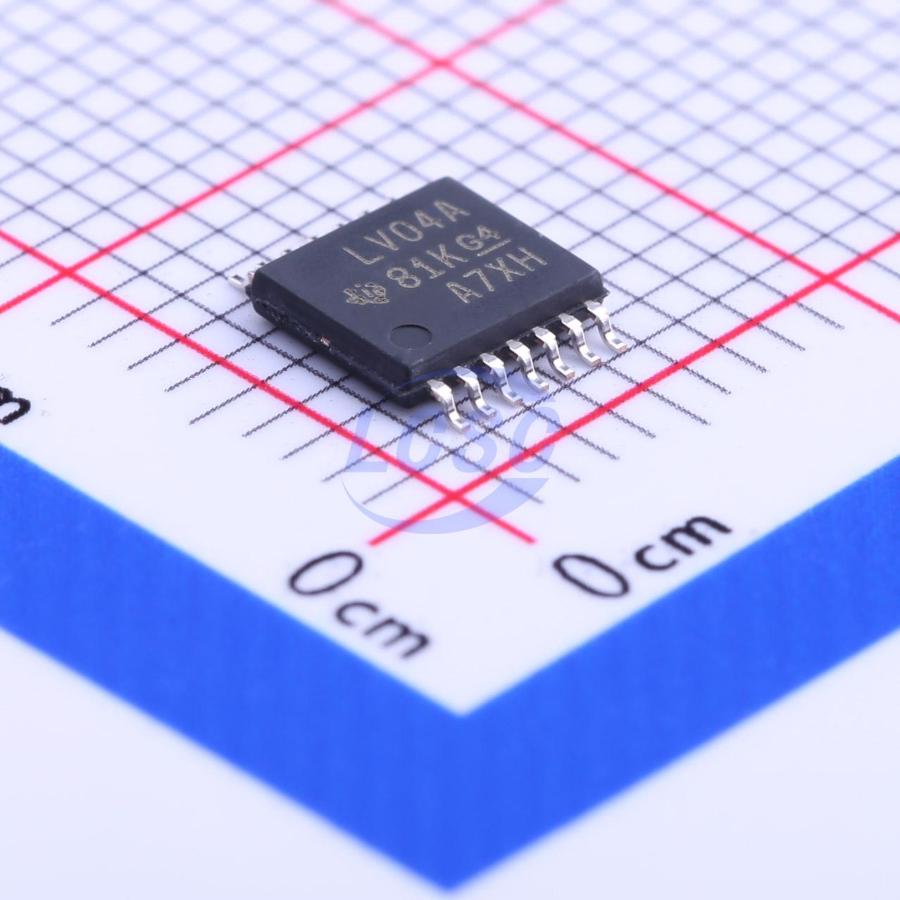

SN74LV04APWR
2V~5.5V 7.5ns@5V,50pF 20uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
HEX INVERTERS 2-V to 5.5-V Vcc Operation
- Manufacturer
- TI
- Manufacturer part #
- SN74LV04APWR
- Store part #
- C7771
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,295 in stock
#C7771
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.95 | ₹169.75 |
| 50+ | ₹27.17 | ₹1,358.50 |
| 150+ | ₹24.26 | ₹3,639.00 |
| 500+ | ₹19.59 | ₹9,795.00 |
| 2,000+ | ₹17.98 | ₹35,960.00 |
| 4,000+ | ₹17.01 | ₹68,040.00 |
5 × ₹33.95
₹169.75
excl. GST
₹200.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV04APWR
₹169.75 for 5 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 12mA
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
These hex inverters are designed for 2- V to 5.5- V Vcc operation. The LV04A devices contain six independent inverters. These devices perform the Boolean function Y = A(overline) These devices are fully specified for partial- power- down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
Key features
- 2 - V to 5.5 - V Vcc Operation
- Max tpd of 6.5 ns at 5 V
- Latch - Up Performance Exceeds 250 mA Per JESD 17
- Typical VOLO (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2.3V at VCC = 3.3V, TA = 25℃
- Support Mixed - Mode Voltage Operation on All Ports
- Ioff Supports Partial - Power - Down Mode Operation
- ESD Protection Exceeds JESD 22:
- 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
