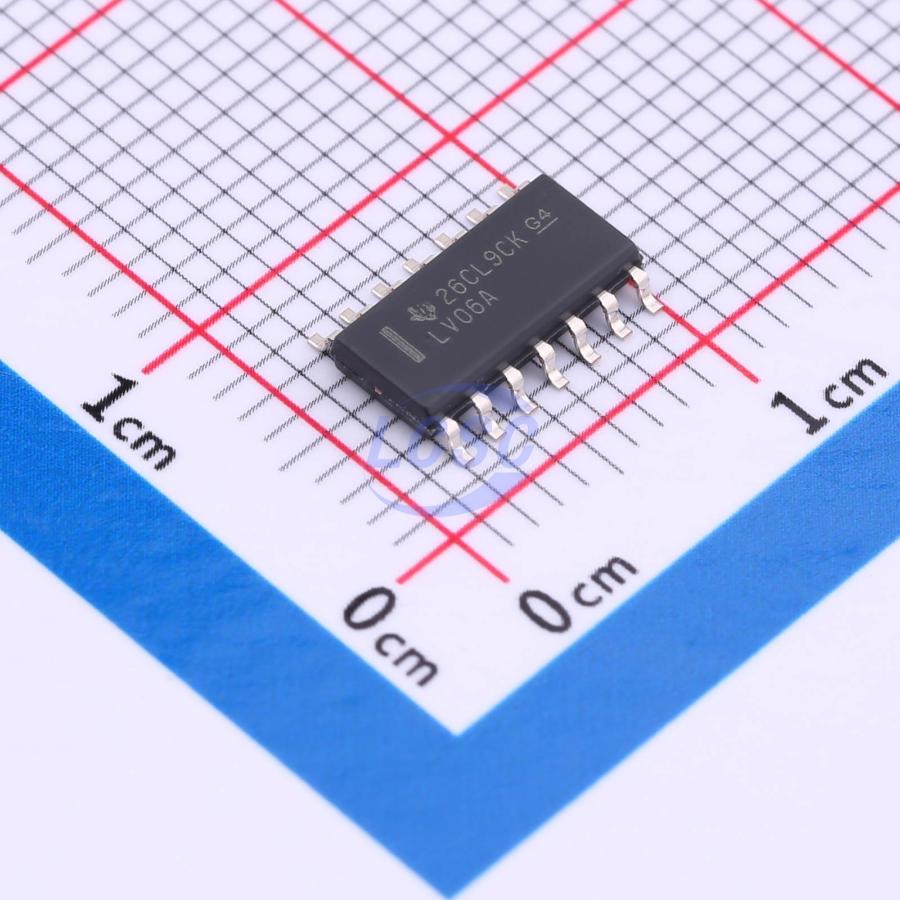

SN74LV06ADR
2V~5.5V 7.5ns@5V,50pF 20uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Inverter Buffers/Drivers With Open-Drain Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV06ADR
- Store part #
- C2860768
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,393 in stock
#C2860768
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.40 | ₹64.40 |
| 10+ | ₹50.74 | ₹507.40 |
| 30+ | ₹44.66 | ₹1,339.80 |
| 100+ | ₹37.30 | ₹3,730.00 |
| 500+ | ₹34.04 | ₹17,020.00 |
| 1,000+ | ₹32.10 | ₹32,100.00 |
1 × ₹64.40
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV06ADR
₹64.40 for 1 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 2.5uA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 16mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
These hex inverter buffers/drivers are designed for 2 - V to 5.5 VCC operation. The SN74LV06A device performs the Boolean function Y = A in positive logic. The open - drain output require pull - up resistors to perform correctly and can be connected to other open - drain outputs to implement active - low wired - OR or active - high wired - AND functions.
Applications
- Servers
- Telecom Infrastructures
- TV Set - Top Boxes
- UPS
- Printers
- Elevators, and Escalators
- EPOS, ECR, and Cash Drawers
- Vending, Payment, Cash Machines
Key features
- 2 - V to 5.5 VCC Operation
- Max tpd of 6.5 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
- Outputs are Disabled During Power Up and Power Down With Inputs Tied to VCC
- Support Mixed - Mode Voltage Operation on All Ports
- Supports Live insertion, Partial Power Down Mode, and Back Drive Protection
- Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2500 - V Human - Body Model (A114 - 1)
- 200 - V Machine Model (A115 - A)
- 2000 - V Charged - Device Mode (C101)
Alternatives
Similar parts — check the datasheet before substituting.
