TIDatasheet (PDF)

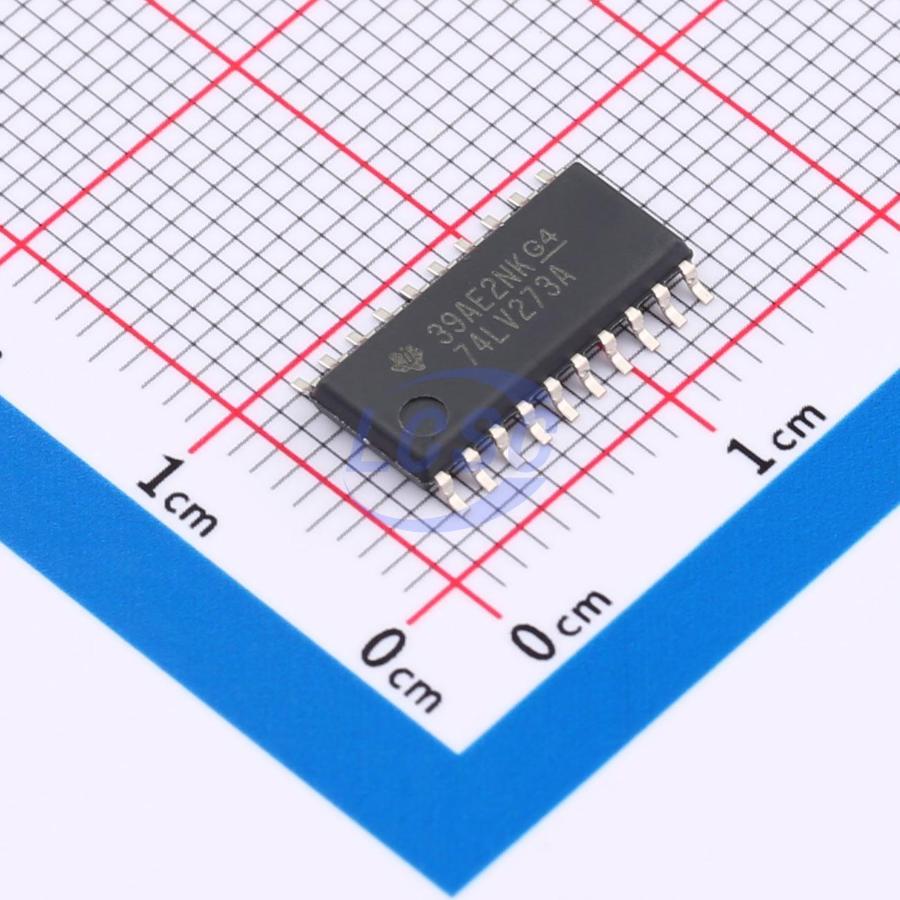

SN74LV273ANSR
2V~5.5V 8 8 4.8ns@5V,50pF SO-20-208mil Flip Flops RoHS
SO-20-208milROHS3 CompliantActive
Eight-channel D-type flip-flop with clear function
- Manufacturer
- TI
- Manufacturer part #
- SN74LV273ANSR
- Store part #
- C2652838
- Package / case
- SO-20-208mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,609 in stock
#C2652838
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.78 | ₹107.78 |
| 10+ | ₹91.27 | ₹912.70 |
| 30+ | ₹79.54 | ₹2,386.20 |
| 100+ | ₹69.76 | ₹6,976.00 |
| 500+ | ₹66.72 | ₹33,360.00 |
| 1,000+ | ₹64.97 | ₹64,970.00 |
1 × ₹107.78
₹107.78
excl. GST
₹127.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV273ANSR
₹107.78 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Number of Bits per Element
- 8
- Output Type
- Push-Pull
- Operating Temperature
- -40℃~+125℃
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 8
- Current - Output High(IOH)
- 12mA
- Current - Output Low(IOL)
- 12mA
- Quiescent Current
- 20uA
- Setup Time
- 4.5ns
- Propagation Delay
- 4.8ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
The SN74LV273A is an octal D-type flip-flop designed to operate at VCC from 2V to 5.5V.
Applications
- Substation control
- I/O modules; analog PLC/DCS inputs
- HMI
- Flow meters
- Patient monitoring
- Test and measurement solutions
Key features
- VCC operating range: 2V to 5.5V
- tpd max 10.5 ns at 5V
- VOLP (output ground bounce) typical < 0.8V (VCC = 3.3V, TA = 25℃)
- VOHV (output VOH undershoot) typical > 2.3V (VCC = 3.3V, TA = 25℃)
- Supports partial power-down mode operation
- Mixed-mode voltage operation supported on all ports
- Latch-up performance exceeds 250mA per JESD 17
- ESD protection exceeds JESD 22: 3000V HBM, 2000V CDM
