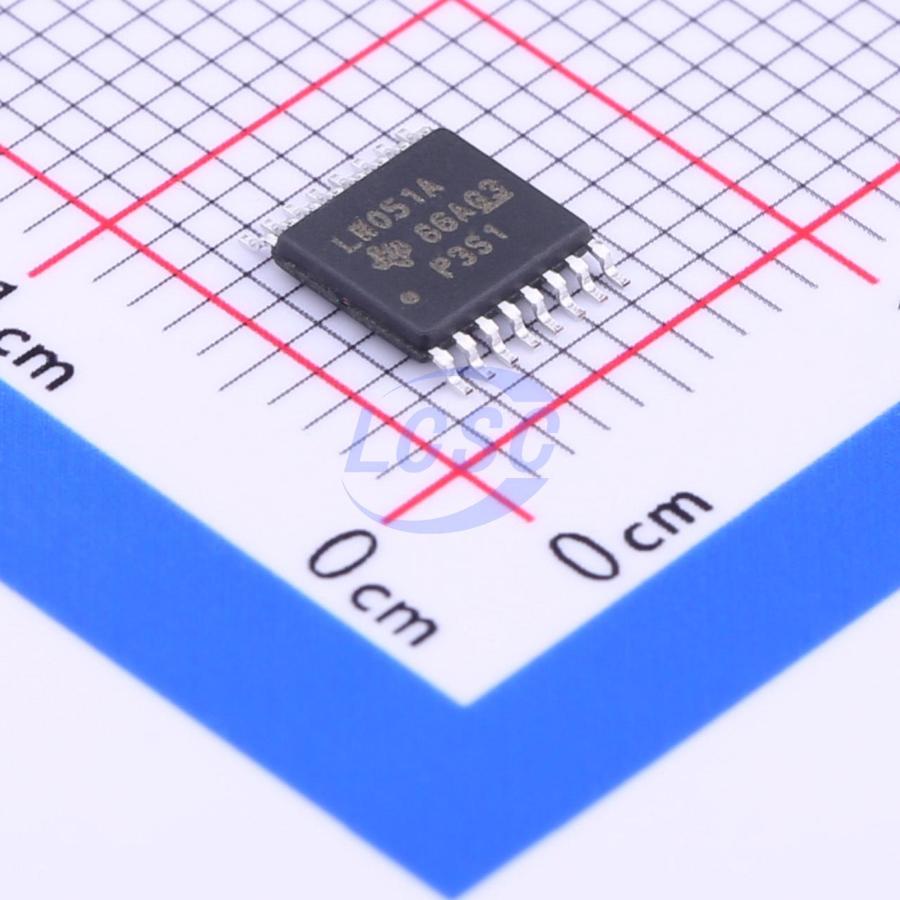

SN74LV4051APWR

2V~5.5V 75Ω 8 TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

8-CHANNEL ANALOG MULTIPLEXERS/DEMULTIPLEXERS

Manufacturer: TI
Manufacturer part #: SN74LV4051APWR
Store part #: C7793
Package / case: TSSOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,845 in stock

#C7793

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹43.02	₹215.10
50+	₹35.95	₹1,797.50
150+	₹32.92	₹4,938.00
500+	₹29.15	₹14,575.00
2,000+	₹25.30	₹50,600.00
4,000+	₹24.29	₹97,160.00

Quantity (min 5, multiples of 5)

5 × ₹43.02

₹215.10

excl. GST

₹253.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74LV4051APWR

₹215.10 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~5.5V
Ron: 75Ω
Number of Channels: 8
Propagation Delay: 4ns
Con: 23pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.183 g

Overview

These 8-channel CMOS analog multiplexers/ demultiplexers are designed for 2-V to 5.5-V VCC operation. The ’LV4051A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-toanalog conversion systems.

Applications

signal gating
chopping
modulation or demodulation (modem)
signal multiplexing for analog-to-digital and digital-toanalog conversion systems

Key features

Support Mixed-Mode Voltage Operation on All Ports
High On-Off Output-Voltage Ratio
Low Crosstalk Between Switches
Individual Switch Controls
Extremely Low Input Current
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
