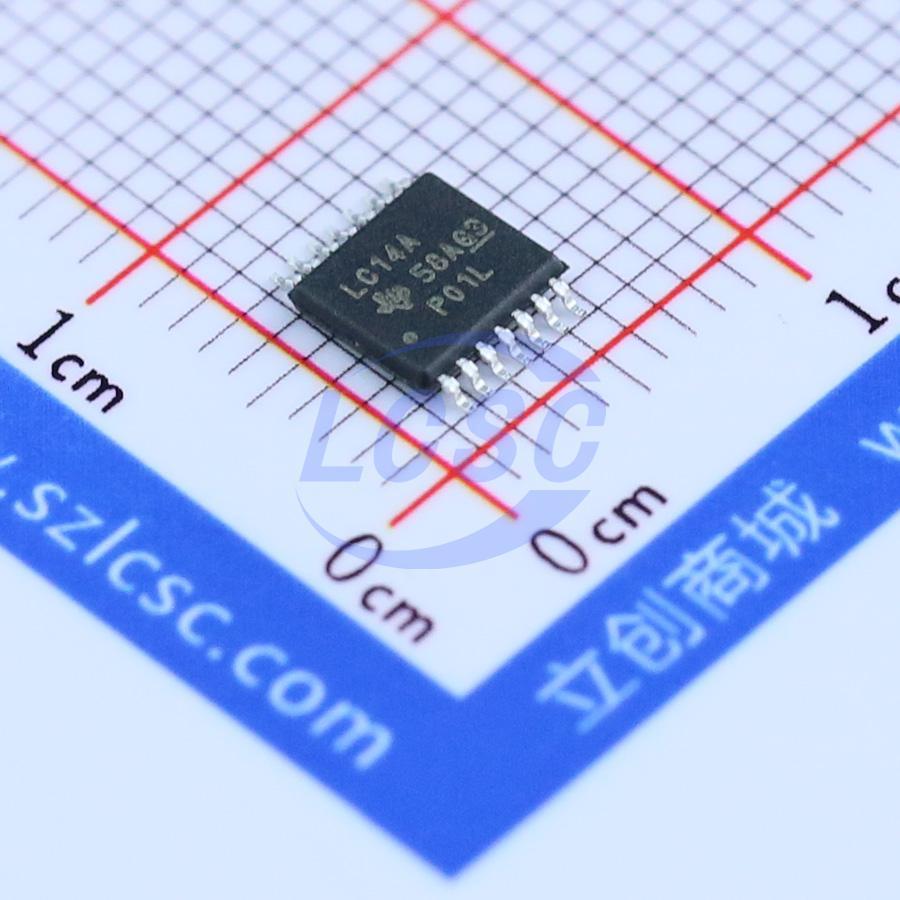

SN74LVC14APWR
Schmitt trigger 1.65V~3.6V 6.2ns@3.3V,50pF 1uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC14APWR
- Store part #
- C7663
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,47,845 in stock
#C7663
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.09 | ₹180.45 |
| 50+ | ₹27.57 | ₹1,378.50 |
| 150+ | ₹23.92 | ₹3,588.00 |
| 500+ | ₹19.37 | ₹9,685.00 |
| 2,000+ | ₹17.34 | ₹34,680.00 |
| 4,000+ | ₹16.11 | ₹64,440.00 |
5 × ₹36.09
₹180.45
excl. GST
₹212.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC14APWR
₹180.45 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 6.2ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 150mV~800mV
- Input Logic Level - High
- 1.3V~2V
- Output Logic Level - High
- 2.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
The SN54LVC14A hex Schmitt- trigger inverter is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC14A hex Schmitt- trigger inverter is designed for 1.65-V to 3.6-V VCC operation. The devices contain six independent inverters and perform the Boolean function Y = A(overline) Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.
Key features
- Operate From 1.65 V to 3.6 V
- Specified From -40℃ to 85℃, -40℃ to 125℃, and -55℃ to 125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 6.4 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
- Ioff Support Live Insertion, Partial Power Down Mode and Back Drive protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
