NexperiaDatasheet (PDF)

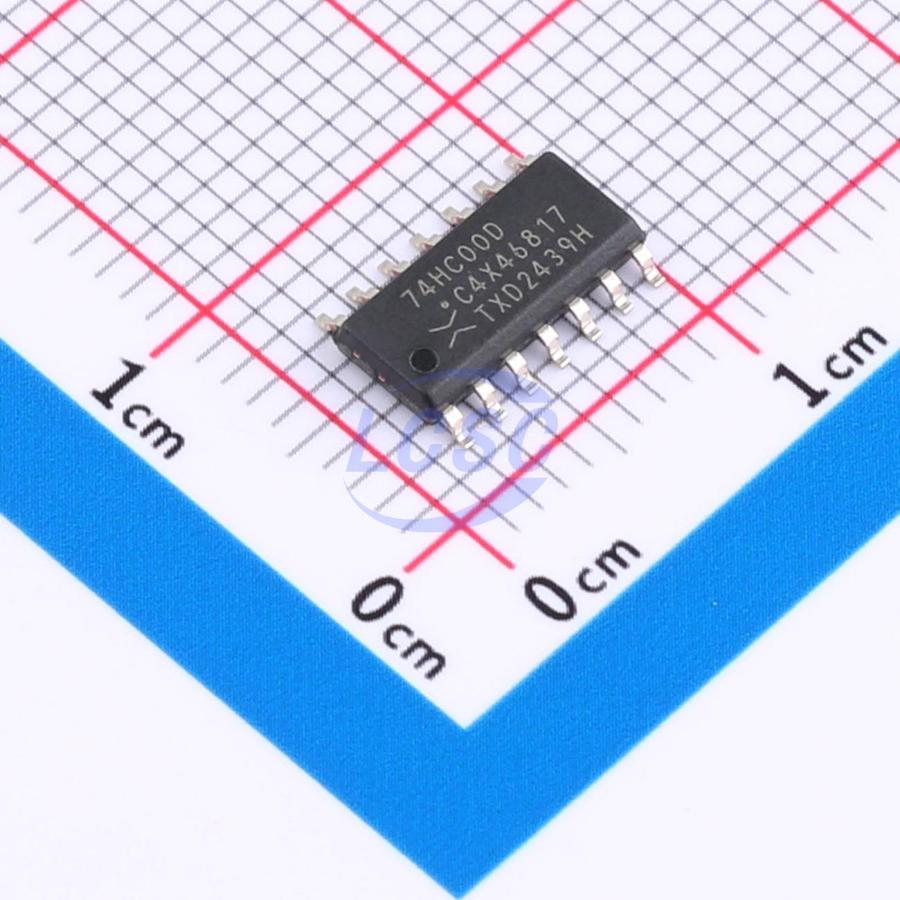

74HC00D,653
StandardCMOS 2V~6V 7ns@6V,50pF 40uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input NAND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC00D,653
- Store part #
- C5586
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,870 in stock
#C5586
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.65 | ₹103.25 |
| 50+ | ₹15.86 | ₹793.00 |
| 150+ | ₹13.52 | ₹2,028.00 |
| 500+ | ₹11.44 | ₹5,720.00 |
| 2,500+ | ₹10.86 | ₹27,150.00 |
| 5,000+ | ₹10.52 | ₹52,600.00 |
5 × ₹20.65
₹103.25
excl. GST
₹121.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC00D,653
₹103.25 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 7ns@6V,50pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;3.7V;5.9V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
The 74HC00; 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC00: CMOS level
- For 74HCT00: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC00DTR(XBLW)#C41361404XBLW · SOP-14 | XBLW | SOP-14 | 1,590 | ₹13.14 · 1,590 in stock | View |
 | SN74HC00DS#C51927312GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 4,660 | ₹9.18 · 4,660 in stock | View |
 | AiP74HC00SA14.TR#C51940055Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 1,065 | ₹13.34 · 1,065 in stock | View |
 | 74HC00D#C699445HTC · SOIC-14 | HTC | SOIC-14 | 1,810 | ₹40.31 · 1,810 in stock | View |
 | EM74HC00D#C49188260EnergyMath · SOP-14L | EnergyMath | SOP-14L | 100 | ₹16.75 · 100 in stock | View |
