TI

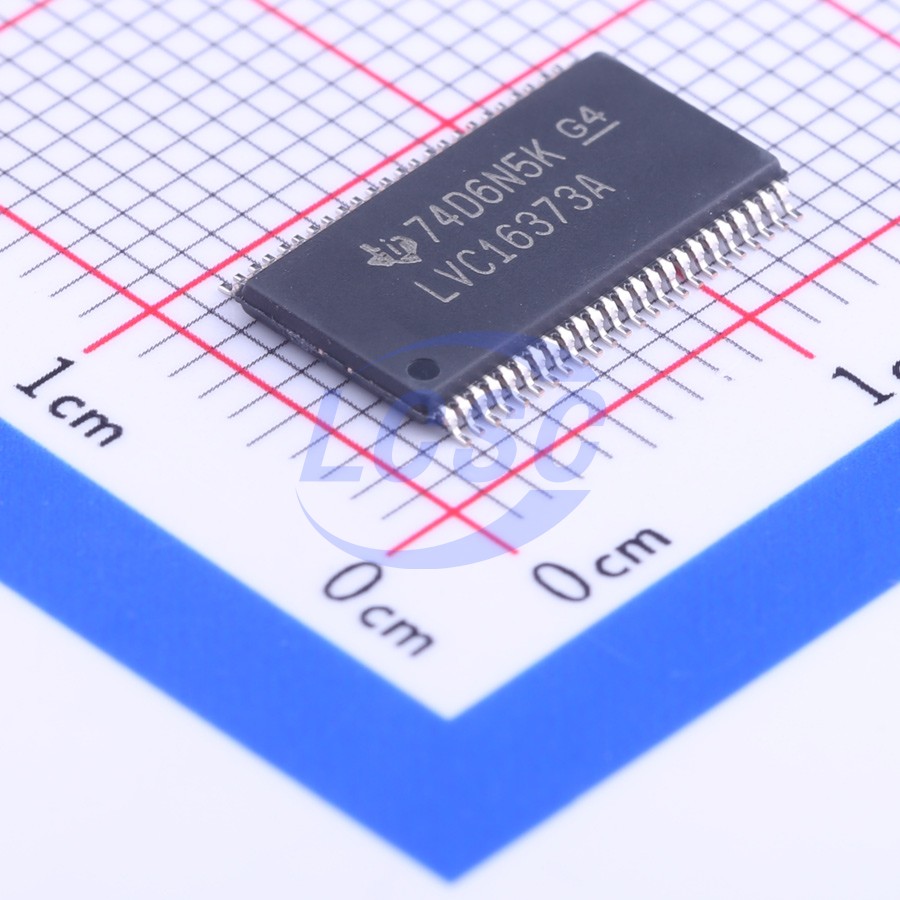

SN74LVC16373ADGGR
D Latch 1.65V~3.6V 16 4.2ns TSSOP-48-6.2mm Latches RoHS
TSSOP-48-6.2mmROHS3 CompliantActive
SN74LVC16373A 16-Bit Transparent D-Type Latch With 3-State Outputs
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,369 in stock
#C36452
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.59 | ₹148.59 |
| 10+ | ₹122.46 | ₹1,224.60 |
| 30+ | ₹107.98 | ₹3,239.40 |
| 100+ | ₹91.56 | ₹9,156.00 |
| 500+ | ₹84.45 | ₹42,225.00 |
| 1,000+ | ₹81.21 | ₹81,210.00 |
1 × ₹148.59
₹148.59
excl. GST
₹175.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC16373ADGGR
₹148.59 for 1 + GST
Specifications
- Quiescent Current
- 20uA
- Series
- 74LVC
- Logic Type
- D Latch
- Voltage - Supply
- 1.65V~3.6V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 24mA
- Output Type
- Tri-State
- Number of Gates
- 16
- Current - Output High(IOH)
- 24mA
- Setup Time
- 1.7ns
- Hold Time
- 1.2ns
- Propagation Delay
- 4.2ns
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.427 g
Overview
The SN74LVC16373A device is a 16-bit transparent D-type latch which is designed for 1.65-V to 3.6-V VCC operation.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures Electronic Points of Sale
Key features
- Operates From 1.65 V to 3.6 V
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.2 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
- Ioff Supports Live-Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVCH16373ADGGR#C2652976TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 182 | ₹285.03 · 182 in stock | View |
 | SN74ALVCH16373DGGR#C139348TI · TSSOP-48-6.2mm | TI | TSSOP-48-6.2mm | 203 | ₹265.39 · 203 in stock | View |
 | SN74ALVCH162373GR#C2675289TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 32 | ₹215.17 · 32 in stock | View |
 | SN74AVC16373DGGR#C2867494TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 8 | ₹808.66 · 8 in stock | View |
| 74LVCH16373ADGG-QJ#C548893Nexperia · TSSOP-48-6.2mm | Nexperia | TSSOP-48-6.2mm | On request | Price on request | Quote | |
