UMW

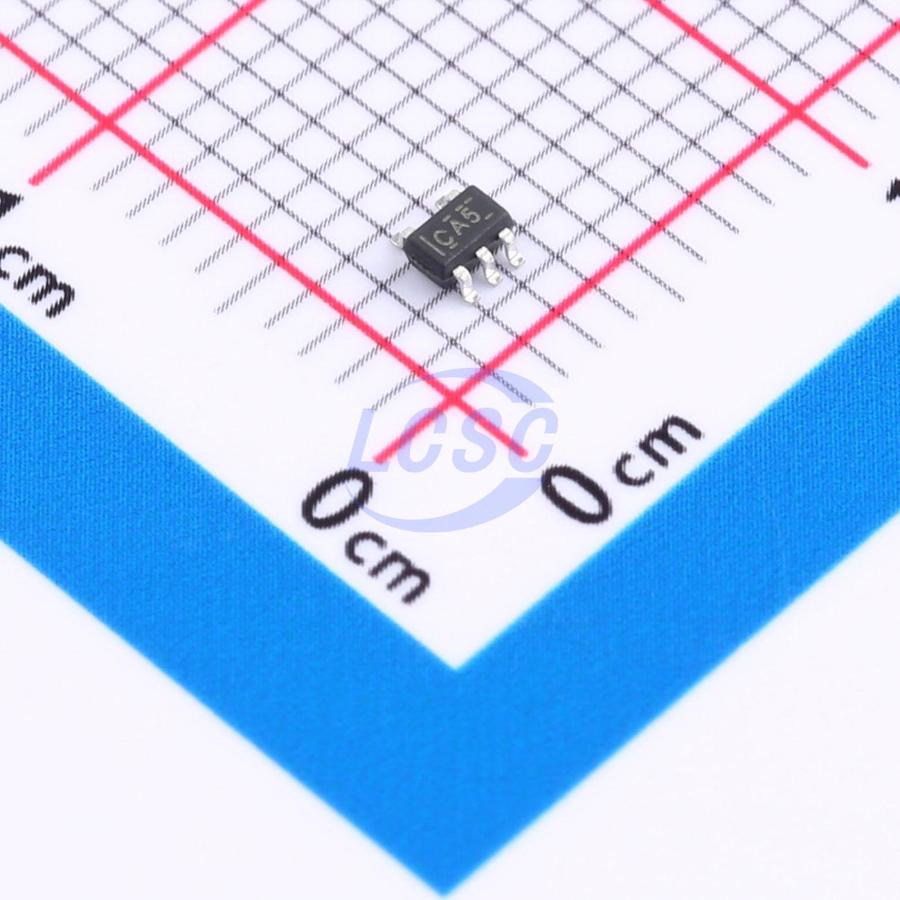

SN74LVC1G00DCKR(UMW)

10uA 1.65V~5.5V 10ns@5V,15pF SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

2-input NAND integrated circuit

Manufacturer: UMW
Manufacturer part #: SN74LVC1G00DCKR(UMW)
Store part #: C2976658
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,220 in stock

#C2976658

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹5.89	₹58.90
100+	₹4.67	₹467.00
300+	₹4.06	₹1,218.00
3,000+	₹3.33	₹9,990.00
6,000+	₹2.96	₹17,760.00
9,000+	₹2.78	₹25,020.00

Quantity (min 10, multiples of 10)

10 × ₹5.89

₹58.90

excl. GST

₹69.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G00DCKR(UMW)

₹58.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Operating Temperature: -40℃~+105℃
Input Logic Level - High: 1.7V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 10ns@5V,15pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

UMW SN74LVC1G00 is a 2-input NAND gate IC that performs the logic functions Y = A×B (overline) and Y = A (overline) + B (overline). Designed with advanced CMOS process technology, it features low power consumption and high output drive capability. The device operates with supply voltage VCC ranging from 1.65V to 5.5V and is available in compact package options including SOT23-5/SC70-5/SOT-553, SFN/SON-6, DSBGA-5, and X2SON-5, making it well-suited for miniaturized low-power handheld devices, AI applications, and more.
