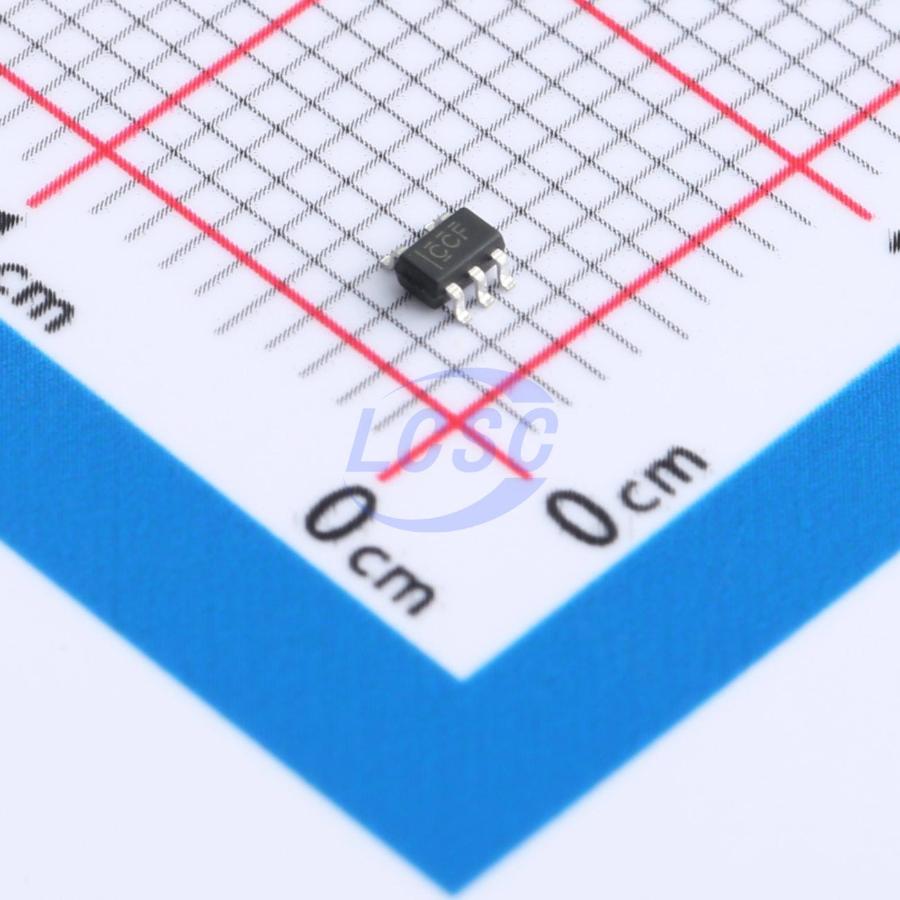

SN74LVC1G04DCKR-MS
StandardCMOS 1.65V~5.5V 10ns@5V,15pF 10uA 1 SC70-5 Gates and Inverters
SC70-5RoHSActive
NOT gate integrated circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G04DCKR-MS
- Store part #
- C7434172
- Package / case
- SC70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C7434172
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.21 | ₹1,563.00 |
| 3,000+ | ₹4.64 | ₹13,920.00 |
| 6,000+ | ₹4.19 | ₹25,140.00 |
| 9,000+ | ₹3.97 | ₹35,730.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G04DCKR-MS
₹74.70 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 10ns@5V,15pF
- Output Logic Level - Low
- 350mV
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V
- Input Logic Level - Low
- 700mV
- Output Logic Level - High
- 4V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The SN74LVC1G04 is a single inverter gate IC that implements the logic function Y = ¬A. Designed with advanced CMOS process technology, it features low power consumption and high output drive capability, operating over a VCC supply voltage range of 1.65V to 5.5V. Available in multiple compact package options, the SN74LVC1G04 is well-suited for high-precision instruments, miniaturized low-power handheld devices, and AI applications.
Applications
- Portable audio interfaces
- Blu-ray players and home theater systems
- Digital TV
- Solid-state drives
- Wireless headphones, smartwatches, etc.
- Smart wearable devices
Key features
- Low input current: typical 0.1uA
- Wide operating voltage range: 1.65V to 5.5V
- Low quiescent current: typical 0.1uA
- Package: DBV/DCK/DRL/YZP/DRY/DSF/DPW
- High output drive: VCC = 4.5V, greater than 32mA
