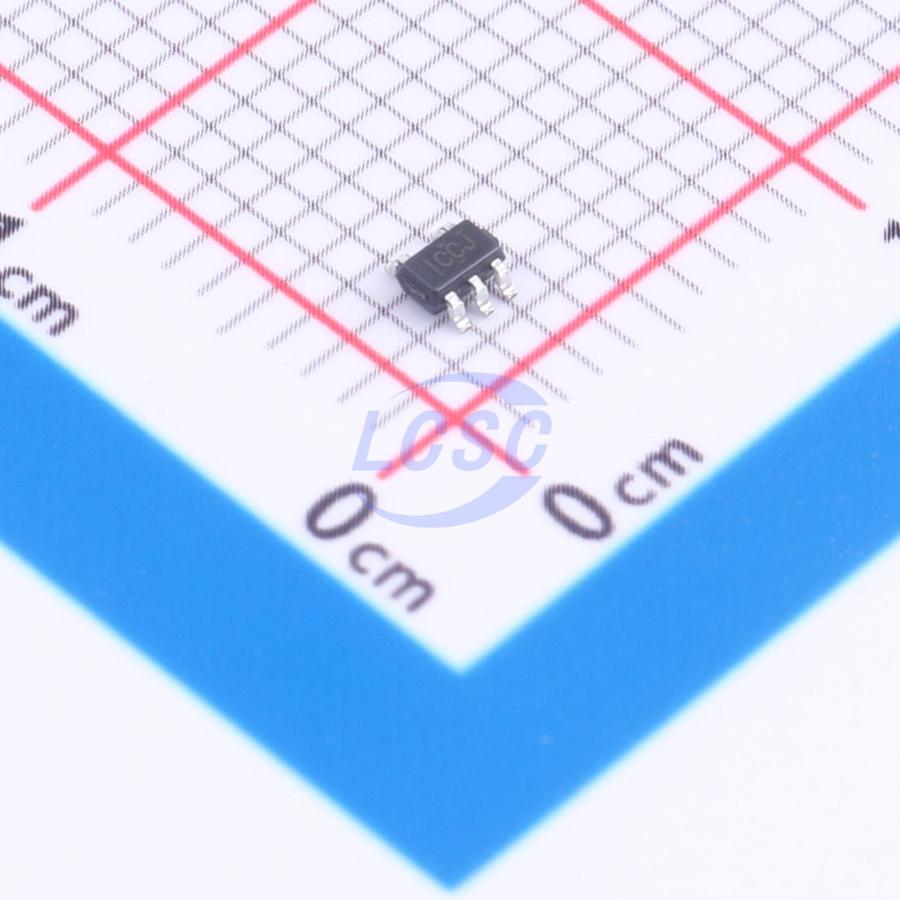

SN74LVC1G04QDCKRQ1
1.65V~5.5V 3.7ns@5V,50pF 10uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G04QDCKRQ1
- Store part #
- C180028
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,975 in stock
#C180028
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.22 | ₹141.10 |
| 50+ | ₹22.31 | ₹1,115.50 |
| 150+ | ₹19.42 | ₹2,913.00 |
| 500+ | ₹16.86 | ₹8,430.00 |
| 3,000+ | ₹16.14 | ₹48,420.00 |
| 6,000+ | ₹15.72 | ₹94,320.00 |
5 × ₹28.22
₹141.10
excl. GST
₹166.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G04QDCKRQ1
₹141.10 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 3.7ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This single inverter gate is designed for 1.65-V to 5.5–VCC operation. The SN74LVC1G04 performs the Boolean function Y = A̅ This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Qualified for Automotive Applications AEC-Q100 Qualified with the Following Results
- Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESG Classification Level C4B
- ESD Protection Exceeds 2000 V Per MIL-STD883, Method 3015; Exceeds 200 V Using Machine Model ΔC = 200 pF, R = 0
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.3 ns at 3.3 V
- Low Power Consumption, 10-μA Max Icc
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
