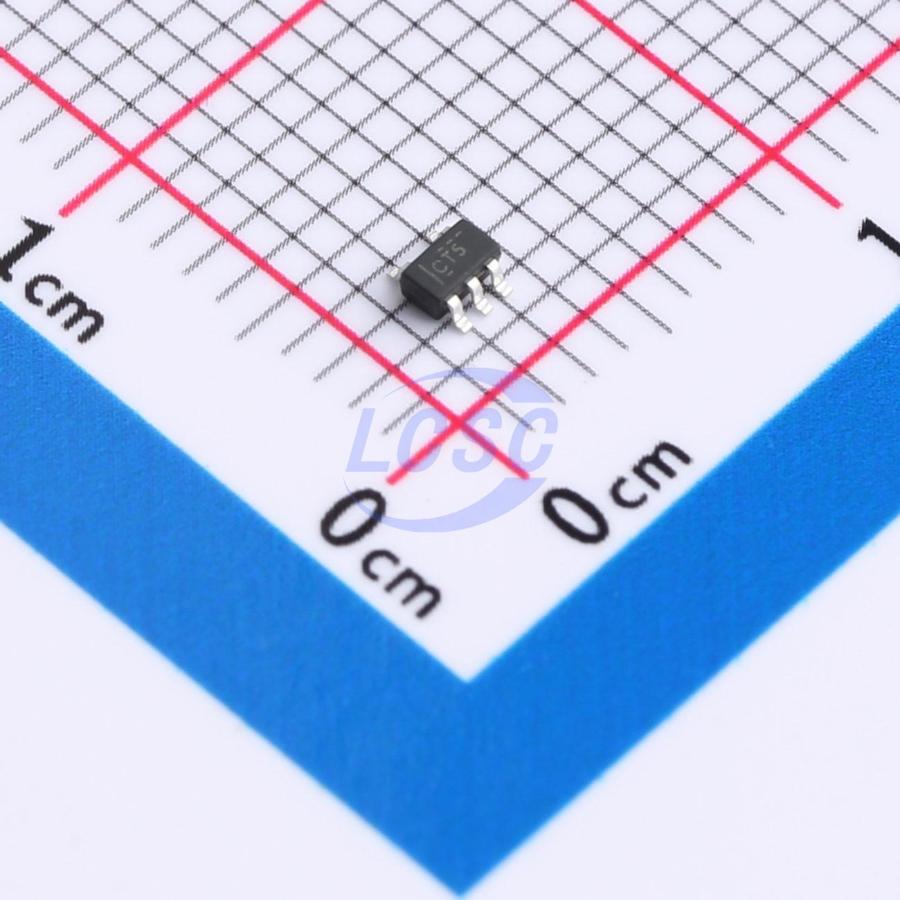

SN74LVC1G06DCKR
10uA 1.65V~5.5V 1 7ns@3.3V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE INVERTER WITH OPEN - DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G06DCKR
- Store part #
- C41431765
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,110 in stock
#C41431765
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.50 | ₹45.00 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 1,000+ | ₹4.26 | ₹4,260.00 |
10 × ₹4.50
₹45.00
excl. GST
₹53.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G06DCKR
₹45.00 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1
- Output Logic Level - Low
- 100mV;450mV;600mV;800mV
- Propagation Delay
- 7ns@3.3V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The SN74LVC1G06 is a single inverter and its output is an open drain. This device provides the Function Y = A (overline) in positive logic.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Input and Open-Drain Output
- Accept Voltages to 5.5V
- Max tPD of 4 ns at 3.3V
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G06C5#C42460130TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,540 | ₹7.44 · 1,540 in stock | View |
