MSKSEMI

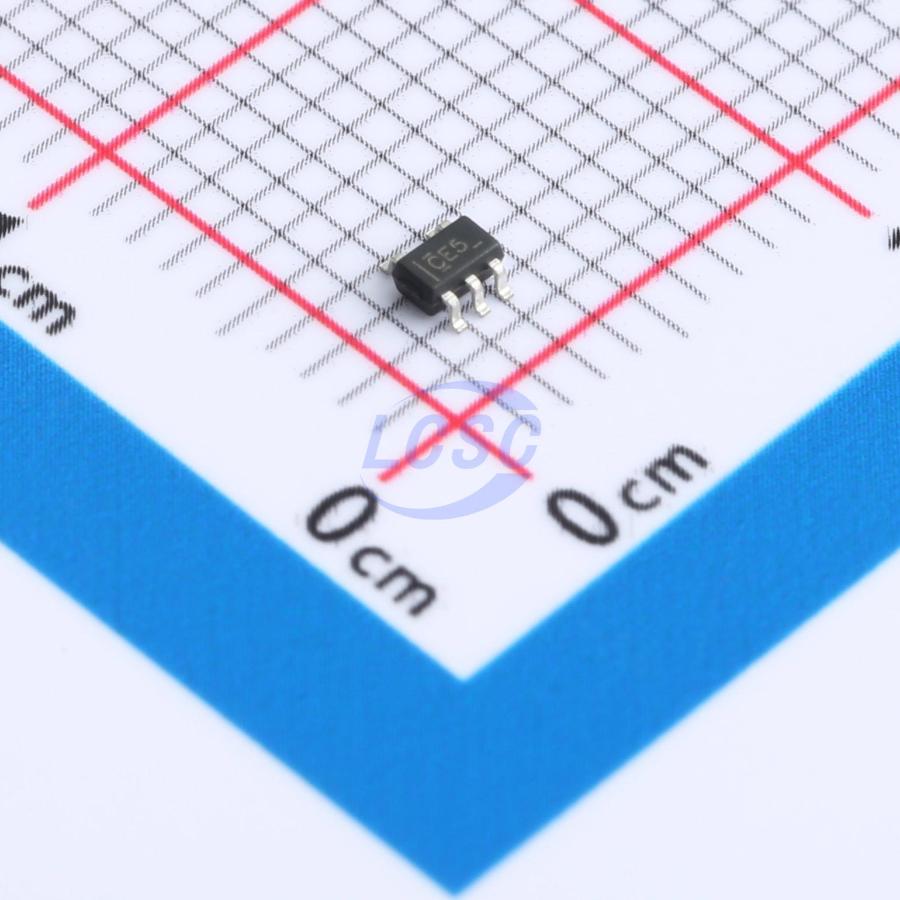

SN74LVC1G08DCKR-MS

AND Gate IC 1 Channel SC70-5

SC70-5RoHSActive

2-input AND gate integrated circuit

Manufacturer: MSKSEMI
Manufacturer part #: SN74LVC1G08DCKR-MS
Store part #: C7434174
Package / case: SC70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,270 in stock

#C7434174

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
10+	₹6.77	₹67.70
100+	₹5.36	₹536.00
300+	₹4.64	₹1,392.00
3,000+	₹4.11	₹12,330.00
6,000+	₹3.69	₹22,140.00
9,000+	₹3.48	₹31,320.00

Quantity (min 10, multiples of 10)

10 × ₹6.77

₹67.70

excl. GST

₹79.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G08DCKR-MS

₹67.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Output Logic Level - High: 1.64V;1.47V;2.15V;2.73V;4V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 32mA
Number of Channels: 1;2
Output Logic Level - Low: 10mV;110mV;200mV;350mV
Propagation Delay: 10ns@5V,15pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

The SN74LVC1G08 is a single 2-input AND gate IC that implements the logic functions Y = A·B and Y = A(overline) + B(overline). Designed with advanced CMOS technology, it features low power consumption and high output drive capability, operating over a supply voltage VCC range of 1.65V to 5.5V. Available in multiple compact package options, the SN74LVC1G08 is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and AI-related applications.
