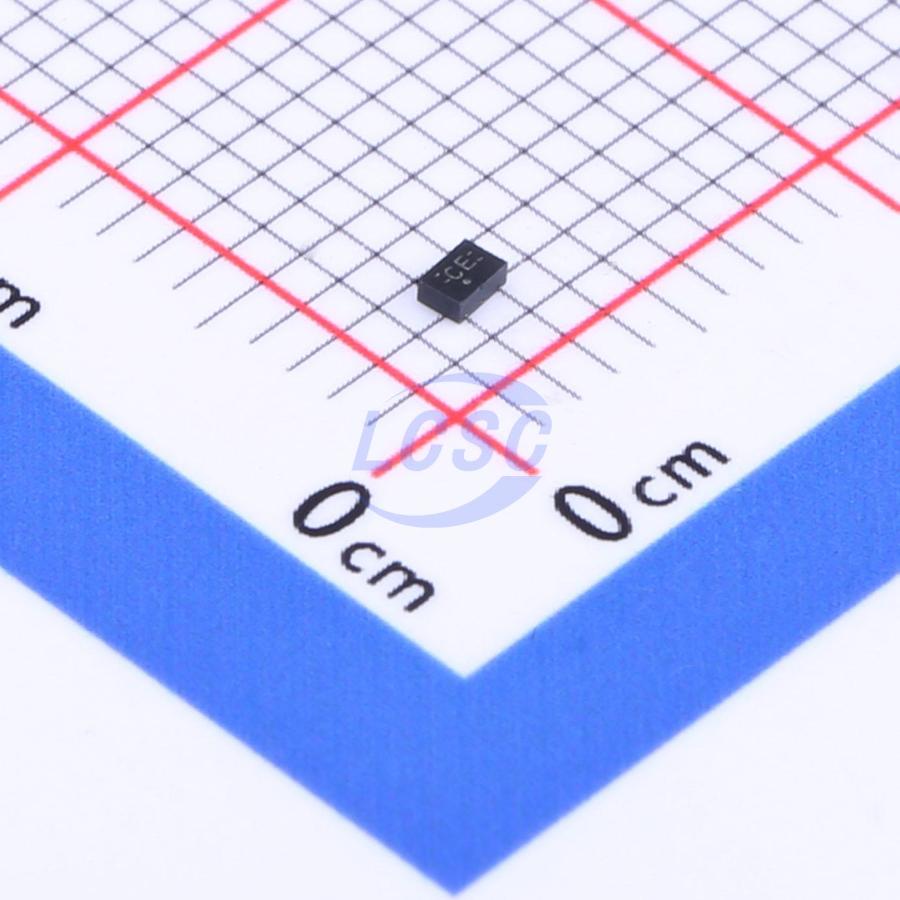

SN74LVC1G08DRYR

AND Gate IC 1 Channel SON-6(1x1.5)

SON-6(1x1.5)ROHS3 CompliantActive

Single-channel dual-input positive AND gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G08DRYR
Store part #: C2682083
Package / case: SON-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

885 in stock

#C2682083

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹27.81	₹139.05
50+	₹21.79	₹1,089.50
150+	₹19.21	₹2,881.50
500+	₹16.00	₹8,000.00
2,500+	₹14.57	₹36,425.00
5,000+	₹13.71	₹68,550.00

Quantity (min 5, multiples of 5)

5 × ₹27.81

₹139.05

excl. GST

₹164.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G08DRYR

₹139.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;550mV
Propagation Delay: 3.6ns@3.3V,15pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.001 g

Overview

Designed for operation over a 1.65V to 5.5V VCC range, this single 2-input AND gate performs the Boolean function Y = A • B or Y = ¬A + ¬B in positive logic. The SN74LVC1G08 device features high output drive capability while maintaining low quiescent power dissipation over a wide VCC operating range. The SN74LVC1G08 is available in multiple packages, including the ultra-small DPW package measuring 0.8mm × 0.8mm.

Applications

ATCA Solutions
Active Noise Cancellation (ANC)
Barcode Scanners
Blood Pressure Monitors
CPAP Machines
Cable Solutions
DLP 3D Machine Vision, Hyperspectral Imaging, Fiber Optic Networks, and Spectral Analysis
E-Books
Embedded PCs
Field Transmitters: Temperature or Humidity Sensors
Fingerprint Recognition
Heating, Ventilation, and Air Conditioning Control (HVAC)
Network Attached Storage (NAS)
Server Motherboards and Power Supply Units (PSU)
Software Defined Radio (SDR)
TVs: High-Definition Television (HDTV), LCD TVs, and Digital TVs
Video Communication Systems
Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards
X-Ray: Baggage Scanners, Medical, and Dental

Key features

Ultra-small 0.64mm² package (DPW) with 0.5mm pitch
5V VCC operation supported
Input voltage up to 5.5V
Down translation to VCC supported
tpd max 3.6ns at 3.3V
Low power consumption, ICC max 10μA
Output drive ±24mA at 3.3V
Ioff supports hot insertion, partial power-down mode, and back-drive protection
Latch-up performance exceeds 100mA, compliant with JESD 78 Class II
ESD protection exceeds JESD 22 specifications
2000V Human Body Model (A114-A)
200V Machine Model (A115-A)
1000V Charged Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.
