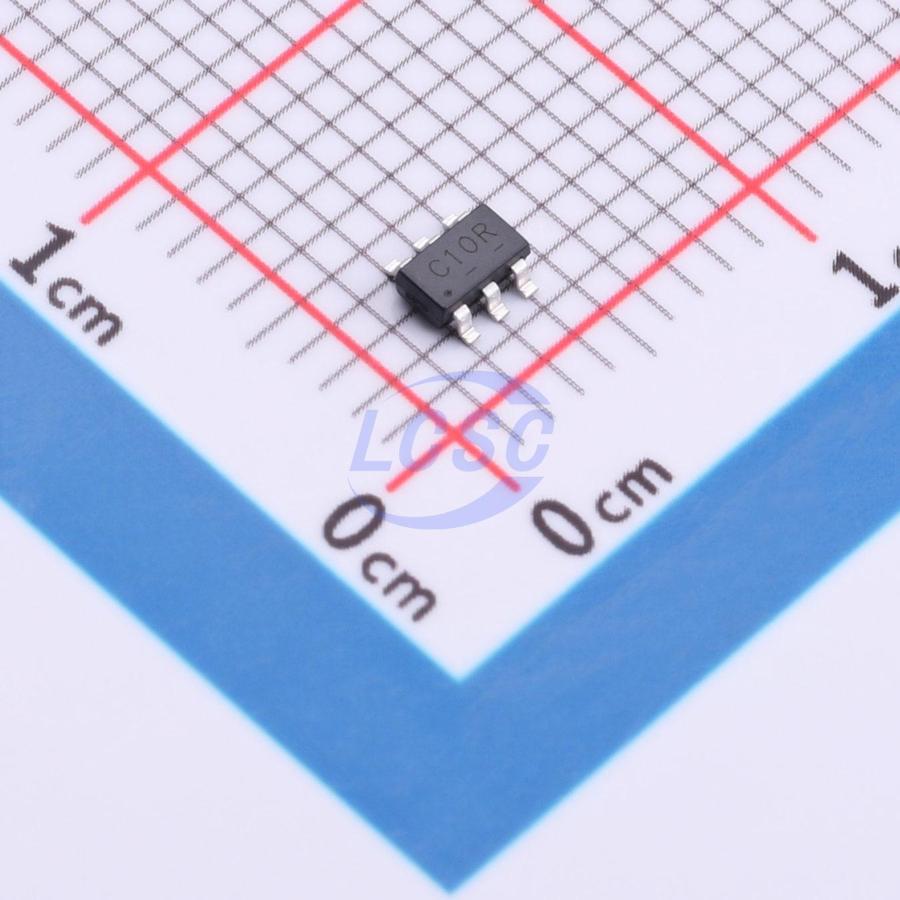

SN74LVC1G10DBVR
10uA 1.65V~5.5V 18ns@1.8V,30pF SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G10DBVR
- Store part #
- C52817170
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,880 in stock
#C52817170
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.88 | ₹11,640.00 |
| 6,000+ | ₹3.47 | ₹20,820.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G10DBVR
₹64.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Features
- Local shutdown mode
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 18ns@1.8V,30pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
SN74LVC1G10DBVR performs the Boolean function Y = A · B · C or Y = A̅ + B̅ + C̅ in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow when the device is powered down.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Personal digital assistants
- Power supplies
Key features
- 5V VCC operation support
- Input voltage tolerance up to 5.5V
- Maximum propagation delay of 3.8ns at 3.3V
- Low power consumption, ICC = 10μA (max)
- ±24mA output drive capability at 3.3V
- ESD protection exceeding JESD 22 standard
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G10S6#C52817180TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 330 | ₹7.37 · 330 in stock | View |
