TIDatasheet (PDF)

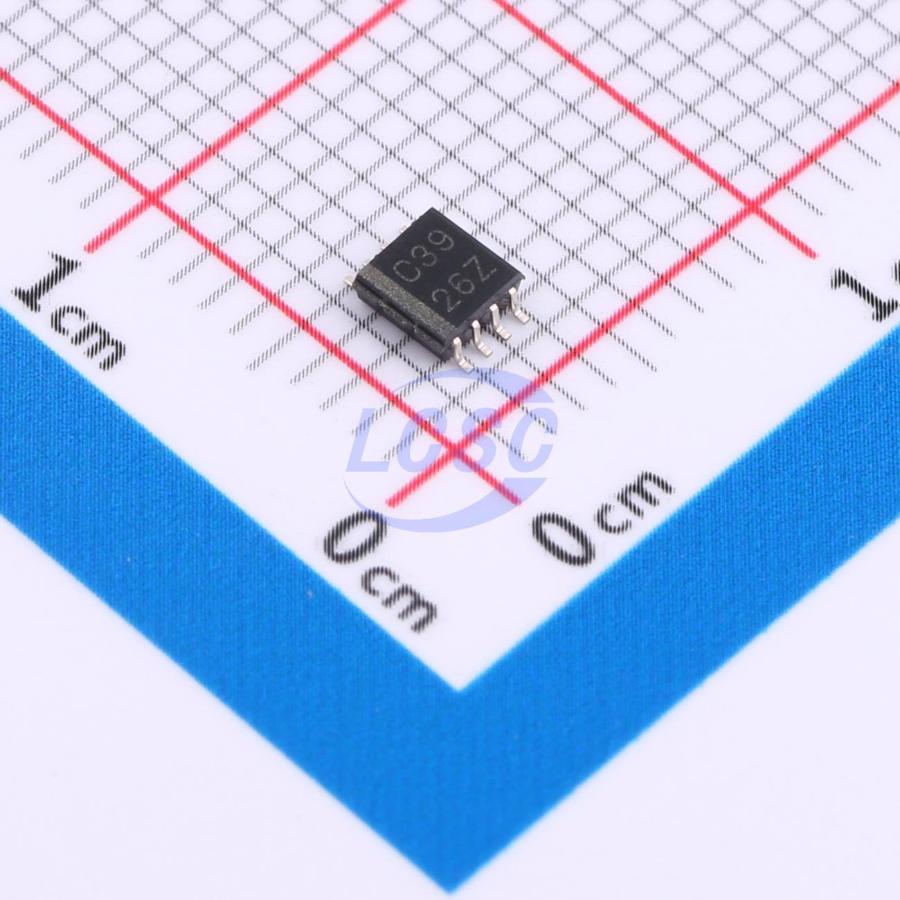

SN74LVC1G139DCTR
2/4 1.65V~5.5V 10uA 3.6ns@5V,15pF Power-off protection SM-8 Signal Switches, Multiplexers, Decoders RoHS
SM-8ROHS3 CompliantActive
2-to-4 line decoder
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G139DCTR
- Store part #
- C2653260
- Package / case
- SM-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C2653260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.46 | ₹99.46 |
| 10+ | ₹81.73 | ₹817.30 |
| 30+ | ₹73.08 | ₹2,192.40 |
| 100+ | ₹64.44 | ₹6,444.00 |
| 500+ | ₹59.24 | ₹29,620.00 |
| 1,000+ | ₹56.44 | ₹56,440.00 |
1 × ₹99.46
₹99.46
excl. GST
₹117.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G139DCTR
₹99.46 for 1 + GST
Specifications
- Type
- Decoder
- Series
- 74LVC
- Number of Channels
- 2/4
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 10uA
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.6ns@5V,15pF
- Function
- Power-off protection
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
Applications
- AV receivers
- Solid State Drives (SSD): client and enterprise
- TVs: LCD, digital and HD
- Tablets: enterprise
- Video analytics: servers
Key features
- NanoStar and NanoFree packages
- 5V VCC operation
- Input voltage up to 5.5V
- Down translation to VCC
- tpd max 4.9ns at 3.3V and 15pF load
- Low power consumption, ICC max 10μA
- Output drive ±24mA at 3.3V
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22: 2000V Human Body Model (A114-A), 200V Machine Model (A115-A), 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G139DCUT#C2860273TI · VSSOP-8 | TI | VSSOP-8 | 180 | ₹112.10 · 180 in stock | View |
 | SN74LVC1G139DCUR#C153798TI · VSSOP-8-0.5mm | TI | VSSOP-8-0.5mm | 44,975 | ₹30.97 · 44,975 in stock | View |
