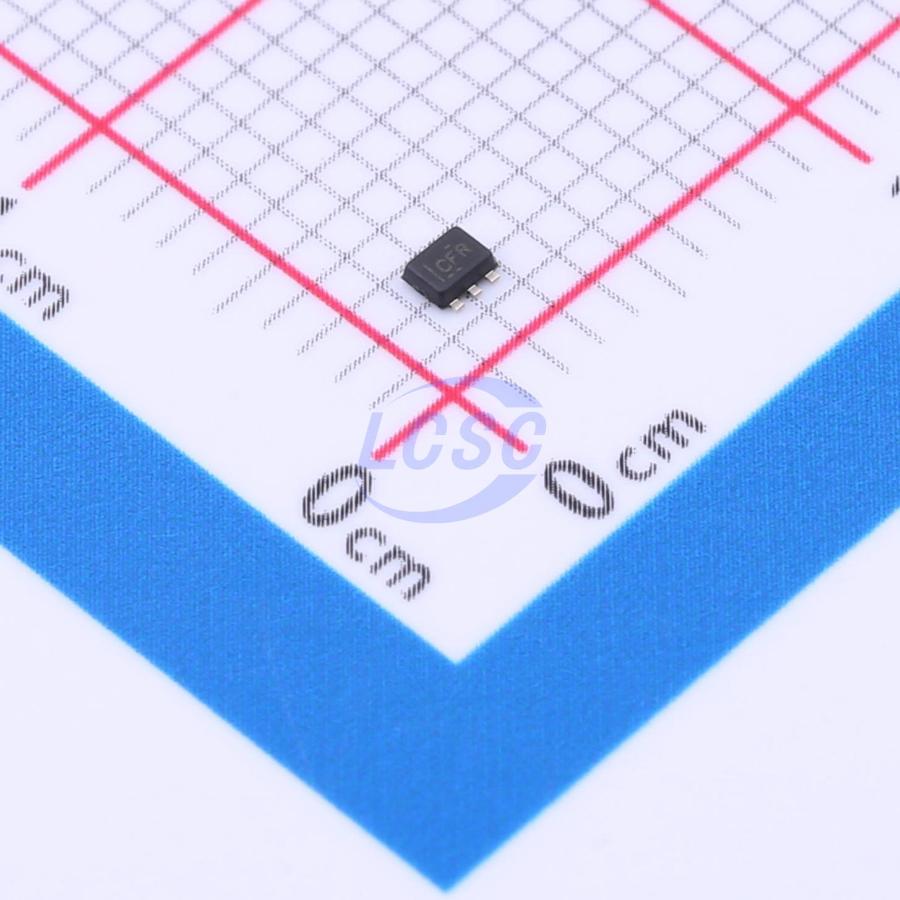

SN74LVC1G14DRLR

Schmitt trigger 1.65V~5.5V 6.5ns@2.5V,50pF 10uA 1 SOT-553 Gates and Inverters RoHS

SOT-553ROHS3 CompliantActive

Single Schmitt-Trigger Inverter

Manufacturer: TI
Manufacturer part #: SN74LVC1G14DRLR
Store part #: C2877550
Package / case: SOT-553
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

165 in stock

#C2877550

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹21.02	₹105.10
50+	₹16.50	₹825.00
150+	₹14.30	₹2,145.00
500+	₹12.33	₹6,165.00
2,500+	₹11.79	₹29,475.00
4,000+	₹11.47	₹45,880.00

Quantity (min 5, multiples of 5)

5 × ₹21.02

₹105.10

excl. GST

₹124.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74LVC1G14DRLR

₹105.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV~550mV
Propagation Delay: 6.5ns@2.5V,50pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.16V~3.33V
Input Logic Level - Low: 390mV~1.87V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V~3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.012 g

Overview

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5–VCC operation. The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A̅. The device functions as an independent inverter with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 4.6 ns at 3.3 V
Low Power Consumption, 10-µA Max ICC
±24-mA Output Drive at 3.3 V
Supports Partial-Power-Down Mode Operation
