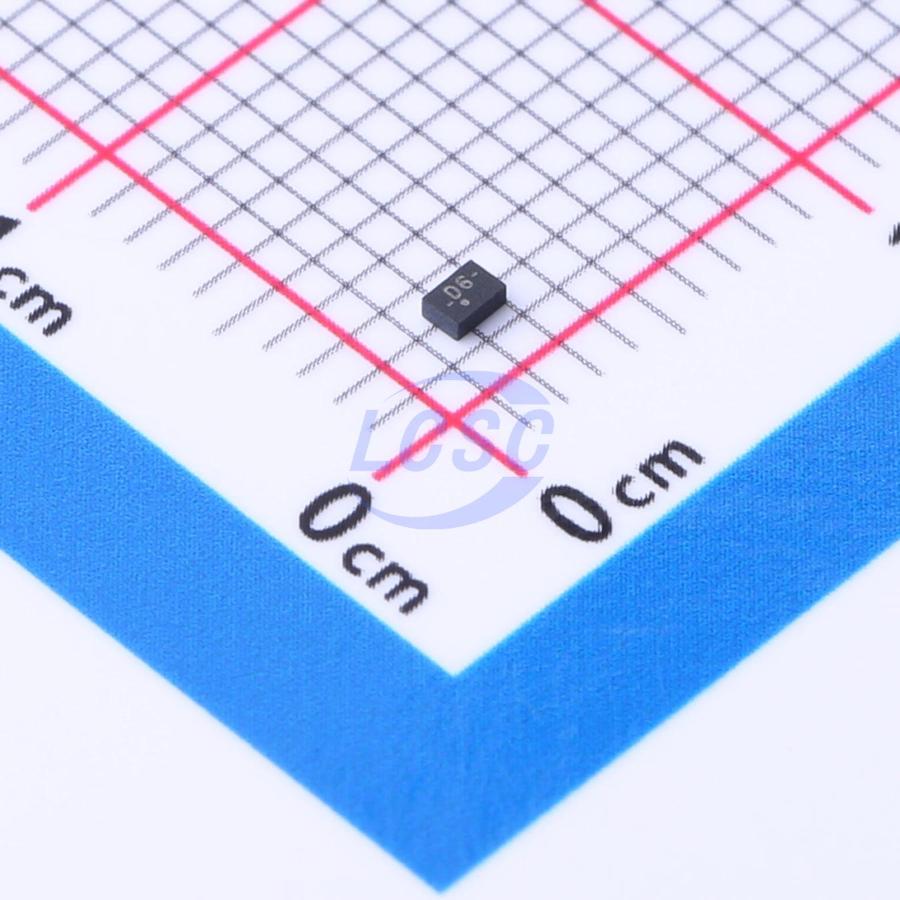

SN74LVC1G175DRYR

1.65V~5.5V 1 1 5ns@5V,50pF SON-6(1x1.5) Flip Flops RoHS

SON-6(1x1.5)ROHS3 CompliantActive

Single D-Type Flip-Flop With Asynchronous Clear

Manufacturer: TI
Manufacturer part #: SN74LVC1G175DRYR
Store part #: C2869236
Package / case: SON-6(1x1.5)
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,010 in stock

#C2869236

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹26.65	₹133.25
50+	₹20.92	₹1,046.00
150+	₹18.13	₹2,719.50
500+	₹15.62	₹7,810.00
2,500+	₹14.94	₹37,350.00
5,000+	₹14.53	₹72,650.00

Quantity (min 5, multiples of 5)

5 × ₹26.65

₹133.25

excl. GST

₹157.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G175DRYR

₹133.25 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Number of Bits per Element: 1
Operating Temperature: -40℃~+125℃
Series: 74LVC Series
Synchronous/Asynchronous: Asynchronous
Number of Elements: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA
Quiescent Current: 10uA
Propagation Delay: 5ns@5V,50pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.015 g

Overview

Available in the NanoFree™ Package Supports 5 - V CC Operation Inputs Accept Voltages to 5.5 V Supports Down Translation to V CC Max t pd of 4.3 ns at 3.3 V Low Power Consumption, 10 - μA Max ICC ±24 - mA Output Drive at 3.3 V I off Supports Live Insertion, Partial - Power - Down Mode, and Back - Drive Protection Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II ESD Protection Exceeds JESD 22 2000 - V Human - Body Model (A114 - A) 200 - V Machine Model (A115 - A) 1000 - V Charged - Device Model (C101)

Applications

TV/Set Top Box/Audio
EPOS (Electronic Point - of - Sale)
Motor Drives
PC/Notebook
Servers
Factory Automation and Control Tablets
Medical Healthcare and Fitness
Smart Grid
Telecom Infrastructure
Enterprise Switching Projectors Storage

Key features

Available in the NanoFree™ Package
Supports 5 - V CC Operation
Inputs Accept Voltages to 5.5 V
Supports Down Translation to V CC
Max t pd of 4.3 ns at 3.3 V
Low Power Consumption, 10 - μA Max ICC
±24 - mA Output Drive at 3.3 V
I off Supports Live Insertion, Partial - Power - Down Mode, and Back - Drive Protection
Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000 - V Human - Body Model (A114 - A) 200 - V Machine Model (A115 - A) 1000 - V Charged - Device Model (C101)
