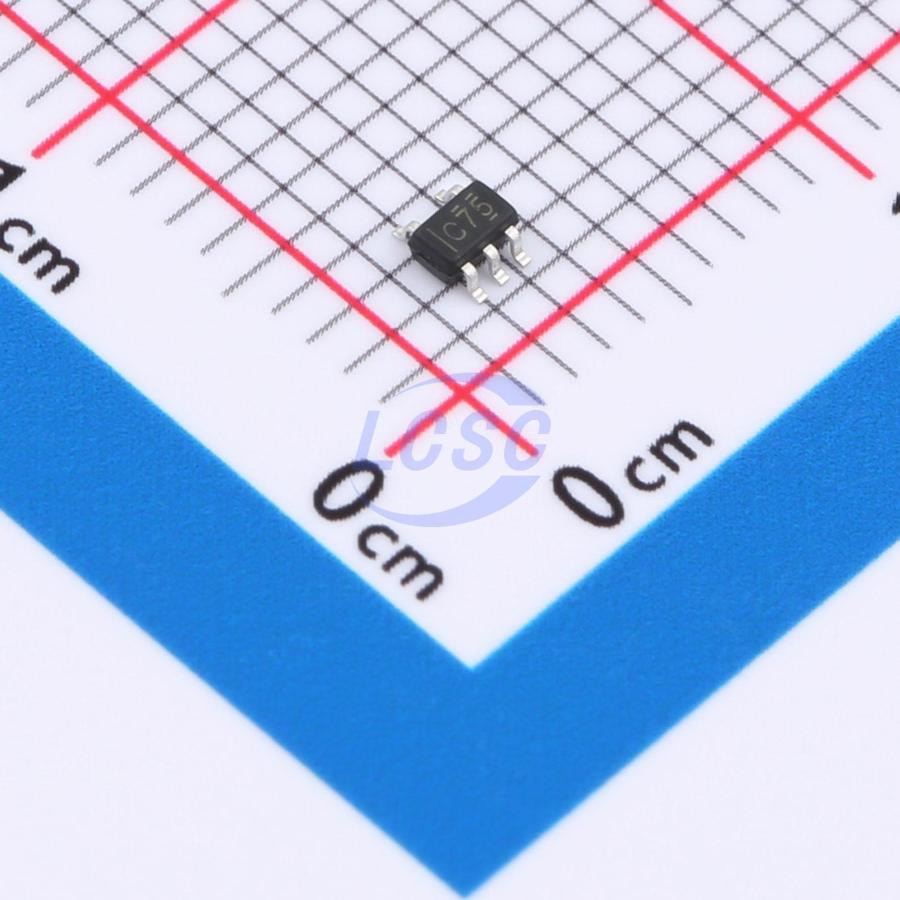

SN74LVC1G17DCKR-MS
Schmitt trigger 1.65V~5.5V 5.9ns@3.3V,50pF 10uA SC-70-5 Gates and Inverters
SC-70-5RoHSActive
Single Schmitt Trigger Buffer
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G17DCKR-MS
- Store part #
- C30602462
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C30602462
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 1,000+ | ₹5.27 | ₹5,270.00 |
| 5,000+ | ₹4.72 | ₹23,600.00 |
| 10,000+ | ₹4.45 | ₹44,500.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G17DCKR-MS
₹86.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5.9ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;550mV
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The operating voltage range of the SN74LVC1G17DBVR-MS/SN74LVC1G17DCKR-MS single Schmitt-trigger buffer is 1.65 V to 5.5 V. The SN74LVC1G17DBVR-MS/SN74LVC1G17DCKR-MS device contains one buffer and performs the Boolean function Y = A. Because of the Schmitt-Trigger inputs, the device may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals, to provide hysteresis (△Vr) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using lof. The loff circuitry disables the outputs, preventing damaging current backlow through the device when it is powered down.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theater
- MP3 Players/Recorders
- Personal Digital Assistants (PDAs)
- Power: Telecom/Server AC/DC Supply
- Solid State Drives (SSDs): Client and Enterprise
- TVs: LCD/Digital and High-Definition(HDTVs)
- Tablets: Enterprise Wireless Headsets, Keyboards, and Mice
Key features
- Schmitt-Trigger inputs provide hysteresis
- Supports 5V Vcc Operation
- Inputs Accept Voltages to 5.5V
- Max tpd of 5.4 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- loff Supports Partial -Power-Down Mode
