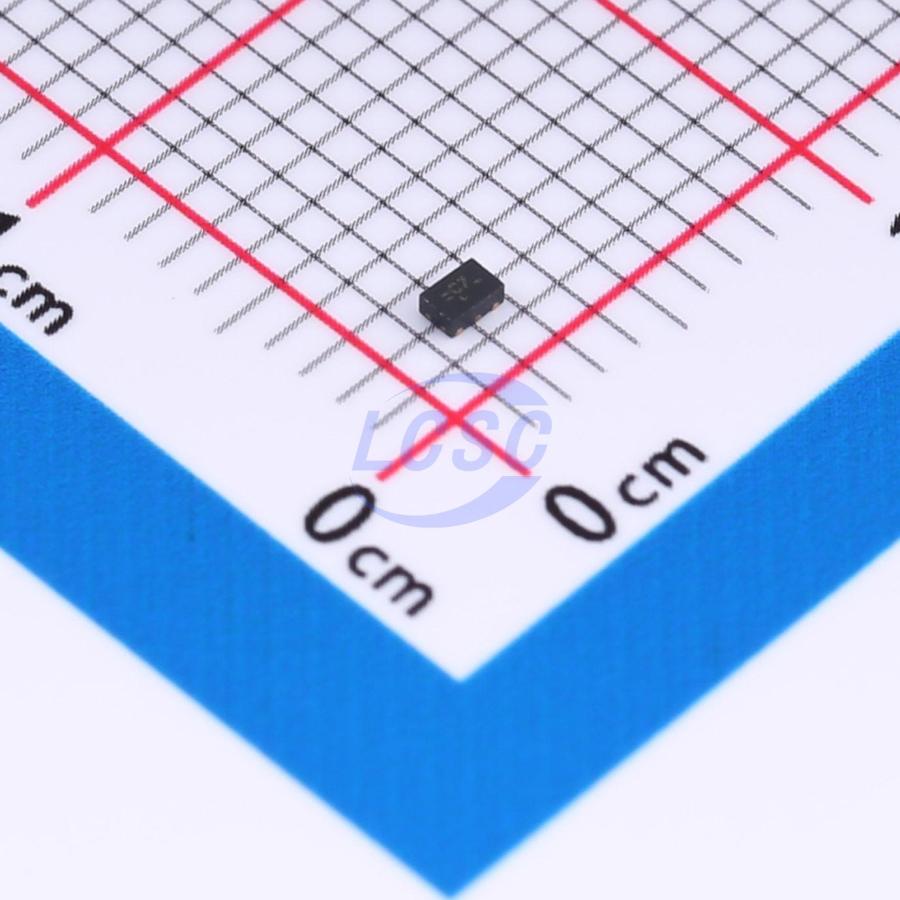

SN74LVC1G17DRYR(UMW)
Schmitt trigger 10uA 1.65V~5.5V 5.5ns@3.3V,50pF DFN6-(1x1.5) Gates and Inverters RoHS
DFN6-(1x1.5)ROHS CompliantActive
Single Non-inverting Schmitt Trigger Buffer
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G17DRYR(UMW)
- Store part #
- C18057303
- Package / case
- DFN6-(1x1.5)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C18057303
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.25 | ₹72.50 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 1,000+ | ₹4.39 | ₹4,390.00 |
| 5,000+ | ₹3.94 | ₹19,700.00 |
| 10,000+ | ₹3.72 | ₹37,200.00 |
10 × ₹7.25
₹72.50
excl. GST
₹85.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G17DRYR(UMW)
₹72.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 3.8V~4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Output Logic Level - Low
- 420mV~550mV
- Propagation Delay
- 5.5ns@3.3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.418 g
Overview
SN74LVC1G17 is a single non-inverting Schmitt-trigger buffer available in three ultra-small packages.
Applications
- Consumer Electronics
- Industrial Control
- Automotive Electronics
Key features
- Available in ultra-small SC70-5, SOT23-5, and DFN6-1.0mm×1.5mm packages
- Source/sink current capability of 24mA at 3.0V
- Die complexity: 20 FETs
- Operating voltage range: 1.65V to 5.5VCC
- Lead-free, halogen-free/bromine-free flame retardant, RoHS compliant
