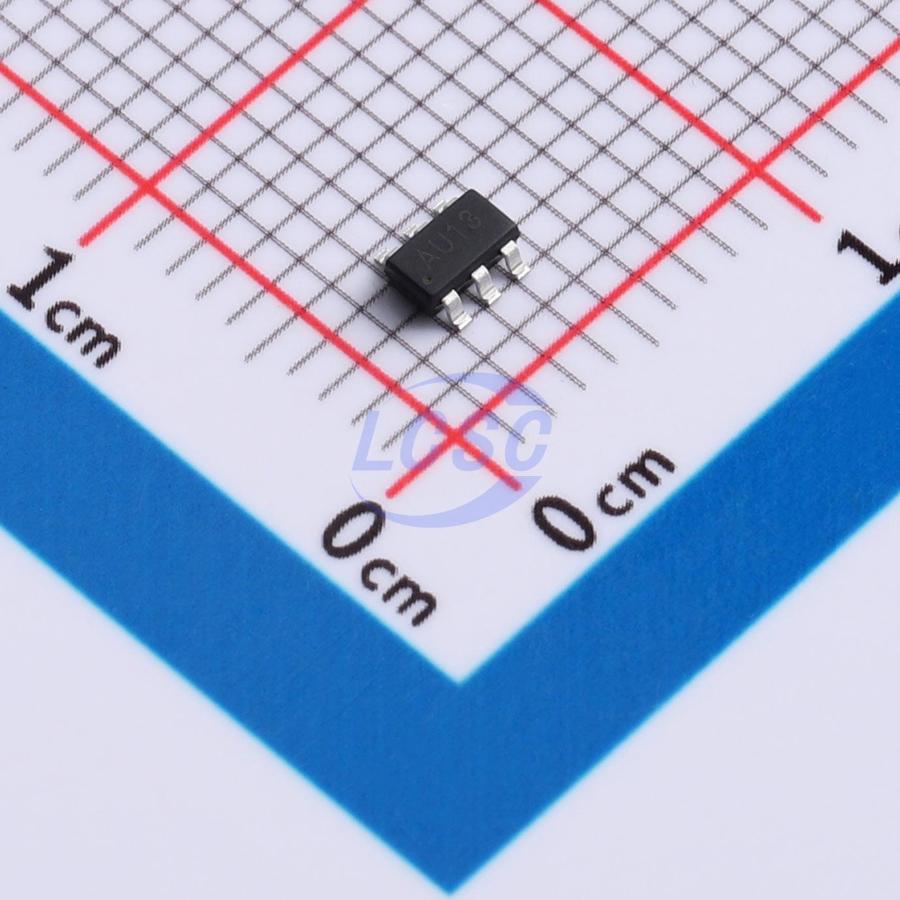

SN74LVC1G18DBVR-TP
1/2 1.65V~5.5V 10uA 3.4ns@5V,50pF SOT-23-6 Signal Switches, Multiplexers, Decoders RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G18DBVR-TP
- Store part #
- C49333182
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,815 in stock
#C49333182
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.95 | ₹54.75 |
| 50+ | ₹8.67 | ₹433.50 |
| 150+ | ₹7.51 | ₹1,126.50 |
| 500+ | ₹6.65 | ₹3,325.00 |
| 3,000+ | ₹5.97 | ₹17,910.00 |
| 6,000+ | ₹5.62 | ₹33,720.00 |
5 × ₹10.95
₹54.75
excl. GST
₹64.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G18DBVR-TP
₹54.75 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74LVC
- Number of Channels
- 1/2
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 10uA
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.4ns@5V,50pF
- Function
- Tri-state output;Output enable high-impedance
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The SN74LVC1G18 is a 1-of-2 non-inverting demultiplexer with 3-state outputs. When select input S is low, data passes from A (input) to Y0 (output), while Y1 (output) is in a high-impedance state. When select input S is high, data passes from A (input) to Y1 (output), while Y0 (output) is in a high-impedance state.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Power supplies
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input voltage tolerance up to 5.5V
- ±24mA output drive capability at 3.3V
- Low power consumption, max Icc = 10 μA
- ESD protection exceeding JESD 22 standard
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G18S6#C46473014TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 445 | ₹14.63 · 445 in stock | View |
