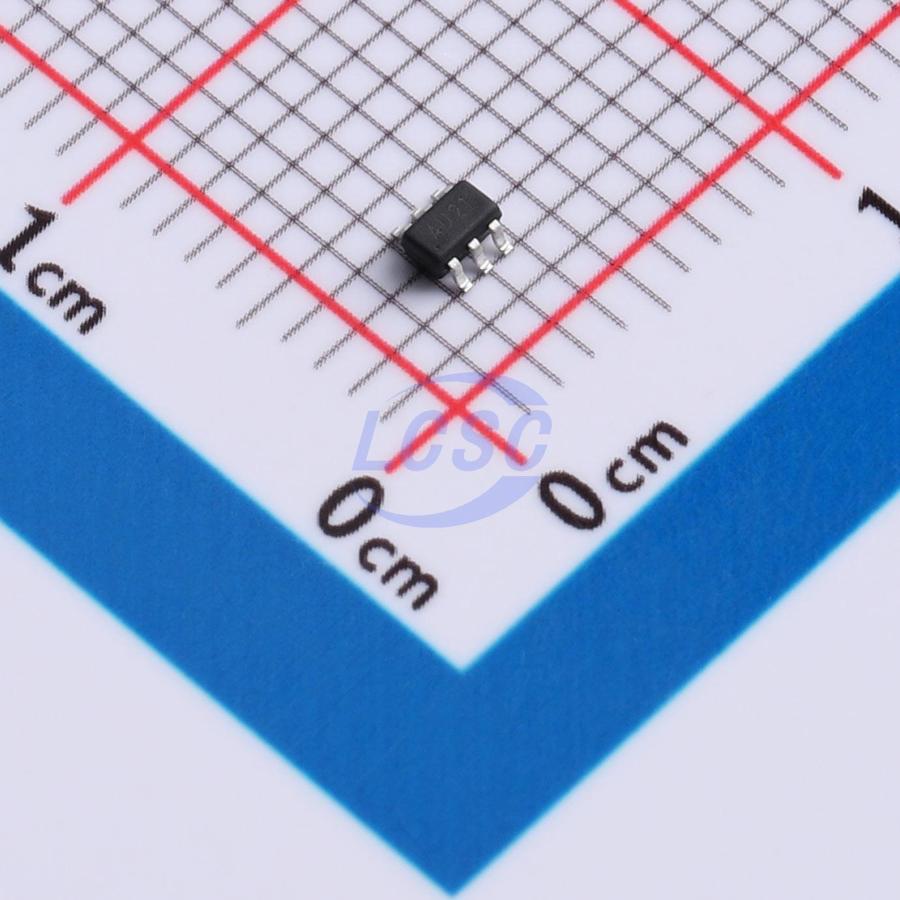

TECH PUBLICDatasheet (PDF)
SN74LVC1G18DCKR-TP
1/2 1.65V~5.5V 10uA 2.7ns@5V,15pF SOT-363 Signal Switches, Multiplexers, Decoders RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G18DCKR-TP
- Store part #
- C49333183
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,710 in stock
#C49333183
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.64 | ₹53.20 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.20 | ₹1,080.00 |
| 500+ | ₹6.34 | ₹3,170.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.31 | ₹31,860.00 |
5 × ₹10.64
₹53.20
excl. GST
₹62.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G18DCKR-TP
₹53.20 for 5 + GST
Specifications
- Type
- Decoder
- Series
- 74LVC
- Number of Channels
- 1/2
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 10uA
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 2.7ns@5V,15pF
- Function
- Tri-state output;Output enable high-impedance
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The SN74LVC1G18 is a 1-of-2 non-inverting demultiplexer with 3-state outputs. When the select input S is low, data is routed from A (input) to Y0 (output), while Y1 (output) is in the high-impedance state. When the select input S is high, data is routed from A (input) to Y1 (output), while Y0 (output) is in the high-impedance state.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies: single controller: analog and digital
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Inputs tolerant up to 5.5V
- ±24mA output drive capability at 3.3V
- Low power consumption, Icc = 10 μA (max)
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
