UMW

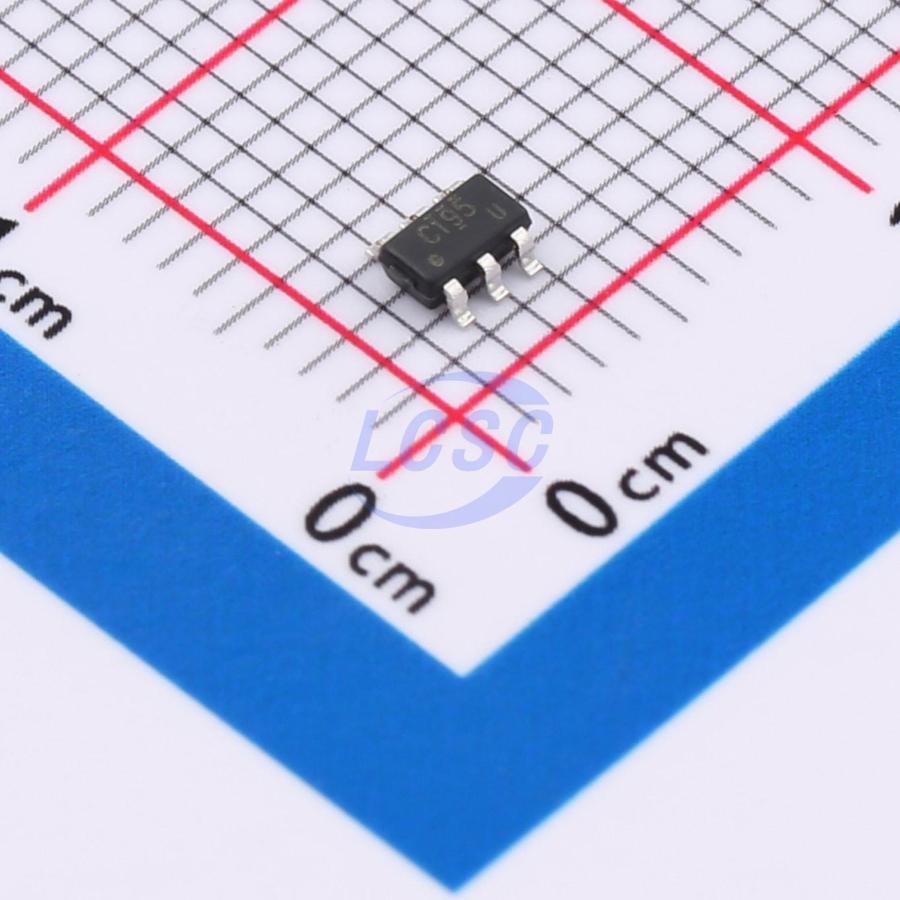

SN74LVC1G19DBVR(UMW)

1/2 1.65V~5.5V 10uA 2.9ns@3.3V,50pF SOT-23-6 Signal Switches, Multiplexers, Decoders RoHS

SOT-23-6ROHS3 CompliantActive

Non-inverting 1-to-2 Demultiplexer/Decoder

Manufacturer: UMW
Manufacturer part #: SN74LVC1G19DBVR(UMW)
Store part #: C22396366
Package / case: SOT-23-6
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,170 in stock

#C22396366

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
10+	₹6.43	₹64.30
100+	₹5.04	₹504.00
300+	₹4.35	₹1,305.00
3,000+	₹3.84	₹11,520.00
6,000+	₹3.43	₹20,580.00
9,000+	₹3.21	₹28,890.00

Quantity (min 10, multiples of 10)

10 × ₹6.43

₹64.30

excl. GST

₹75.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G19DBVR(UMW)

₹64.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Decoder
Series: 74LVC
Number of Channels: 1/2
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 10uA
Current - Output High(IOH): 32mA
Propagation Delay: 2.9ns@3.3V,50pF
Function: Output enable high-impedance;Power-off protection
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.046 g

Overview

The UMW 74LVC1G19 is a high-performance non-inverting 1-to-2 demultiplexer. When the select input [S] is LOW, data at input A is routed to Y0, and Y1 is set to high impedance; when the select input [S] is HIGH, data at input A is routed to Y1, and Y0 is set to high impedance. The device operates over a supply voltage range of 1.65V to 5.5V. It is optimized for on-board buffer applications and supports mixed-voltage (1.65V, 2.3V, 3.0V, and 5.5V) operation through an overvoltage tolerance (OVT) circuit on the I/O pins.
