UMW

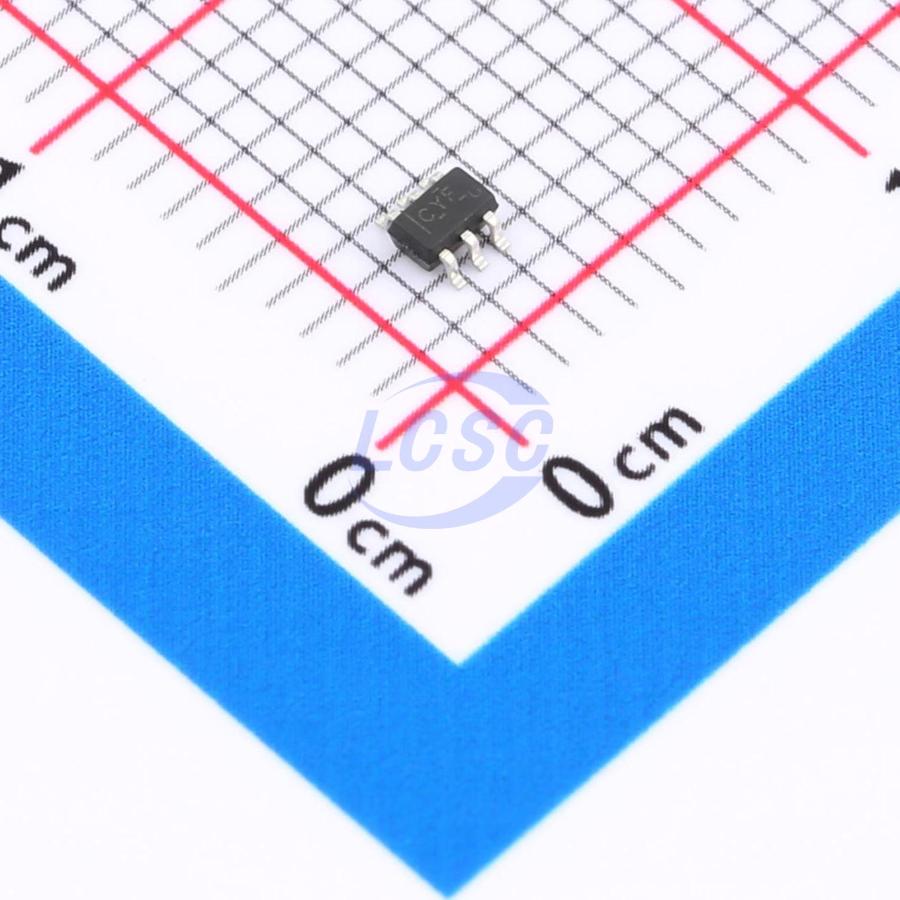

SN74LVC1G19DCKR(UMW)

1/2 1.65V~5.5V 10uA 2.9ns@3.3V,50pF SC-70-6 Signal Switches, Multiplexers, Decoders RoHS

SC-70-6ROHS CompliantActive

Non-inverting 1-to-2 Demultiplexer/Decoder

Manufacturer: UMW
Manufacturer part #: SN74LVC1G19DCKR(UMW)
Store part #: C48946882
Package / case: SC-70-6
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,340 in stock

#C48946882

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
10+	₹7.53	₹75.30
100+	₹5.91	₹591.00
300+	₹5.11	₹1,533.00
3,000+	₹4.50	₹13,500.00
6,000+	₹4.01	₹24,060.00
9,000+	₹3.77	₹33,930.00

Quantity (min 10, multiples of 10)

10 × ₹7.53

₹75.30

excl. GST

₹88.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G19DCKR(UMW)

₹75.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Decoder
Series: 74LVC
Number of Channels: 1/2
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+85℃
Quiescent Current: 10uA
Current - Output High(IOH): 32mA
Propagation Delay: 2.9ns@3.3V,50pF
Function: Output enable high-impedance;Level shifting
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.039 g

Overview

The UMW 74LVC1G19 is a high-performance non-inverting 1-to-2 demultiplexer. When the select input [S] is low, data at A is routed to Y0, while Y1 is set to high impedance. When the select input [S] is high, data at A is routed to Y1, while Y0 is set to high impedance. The device operates over a supply voltage range of 1.65V to 5.5V. This device is optimized for on-board buffering applications and supports mixed (1.65V, 2.3V, 3.0V, and 5.5V) voltage operation through an overvoltage tolerance (OVT) circuit on the I/O pins.
