SN74LVC1G3157DSFR
6Ω 1 1.65V~5.5V X2-SON-6(1x1) Analog Switches, Multiplexers, Demultiplexers RoHS
X2-SON-6(1x1)ROHS3 CompliantActive

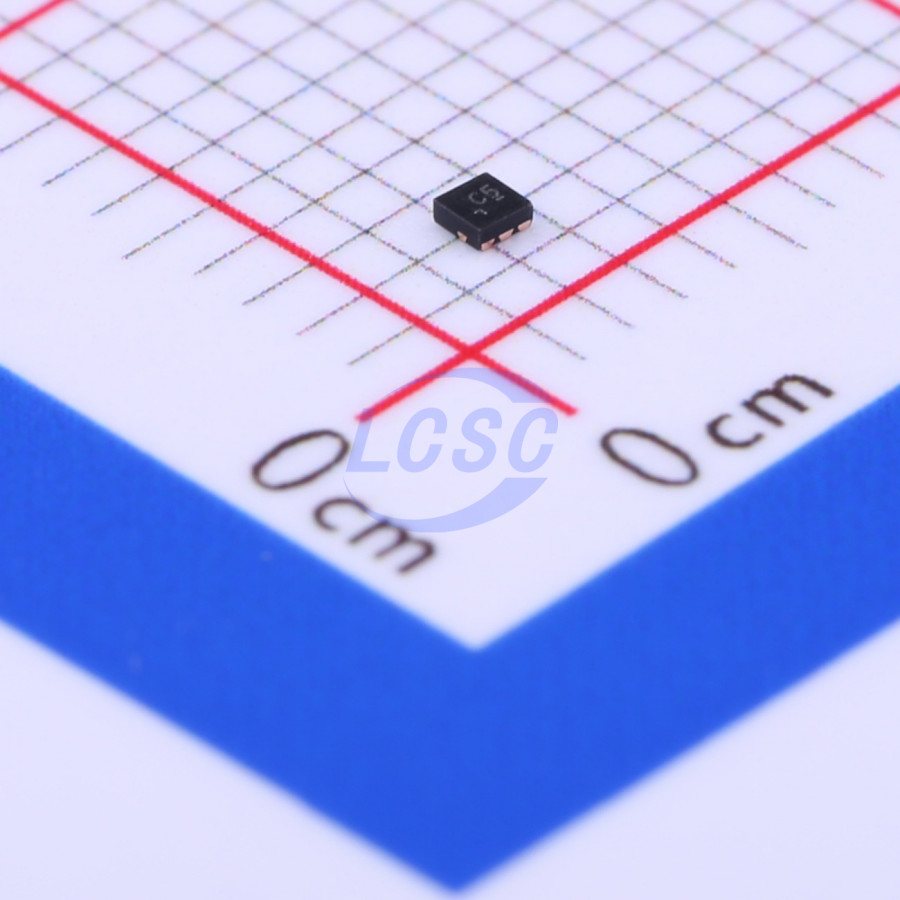

SN74LVC1G3157 Single-Pole Double-Throw Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G3157DSFR
- Store part #
- C350945
- Package / case
- X2-SON-6(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,900 in stock
#C350945
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.22 | ₹161.10 |
| 50+ | ₹25.30 | ₹1,265.00 |
| 150+ | ₹21.92 | ₹3,288.00 |
| 500+ | ₹18.89 | ₹9,445.00 |
| 2,500+ | ₹18.07 | ₹45,175.00 |
| 5,000+ | ₹17.57 | ₹87,850.00 |
5 × ₹32.22
₹161.10
excl. GST
₹190.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G3157DSFR
₹161.10 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Ron
- 6Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 500ps
- Con
- 17.3pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
This single channel single-pole double-throw (SPDT) analog switch is designed for 1.65-V to 5.5 VCC operation. The SN74LVC1G3157 device can handle both analog and digital signals. The SN74LVC1G3157 device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- Wearables and Mobile Devices
- Portable Computing
- Internet of Things (IoT) Audio Signal Routing
- Remote Radio Unit
- Portable Medical Equipment
- Surveillance
- Home Automation
- I2C/SPI/UART Bus Multiplexing
- Wireless Charging
Key features
- ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 1000-V Charged-Device Model (C101)
- 1.65-V to 5.5 VCC Operation
- Qualified For 125°C operation
- Specified Break-Before-Make Switching
- Rail-to-Rail Signal Handling
- Operating Frequency Typically 340 MHz at Room Temperature
- High Speed, Typically 0.5 ns (ΔVCC = 3 V, CL = 50 pF)
- Low ON-State Resistance, Typically 6 Ω (VCC = 4.5 V)
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XS3A1T5157GSH#C3656896Nexperia · XSON-6(1x1) | Nexperia | XSON-6(1x1) | On request | ₹26.33 · 0 in stock | View |
| ASRS13351TB-R#C5355278ASDsemi · DFN1x1-6 | ASDsemi | DFN1x1-6 | 2,980 | ₹25.88 · 2,980 in stock | View | |
| SGM48756XXDM6G/TR#C5153130SGMICRO · X-TDFN-6L(1x1) | SGMICRO | X-TDFN-6L(1x1) | On request | ₹97.98 · 0 in stock | View | |
| DG3257DN-T1-GE4#C727322VISHAY · UDFN-6(1x1) | VISHAY | UDFN-6(1x1) | On request | ₹80.32 · 0 in stock | View | |
 | XS3A1T3157GSH#C5838145Nexperia · XSON-6(1x1) | Nexperia | XSON-6(1x1) | On request | ₹17.83 · 0 in stock | View |
