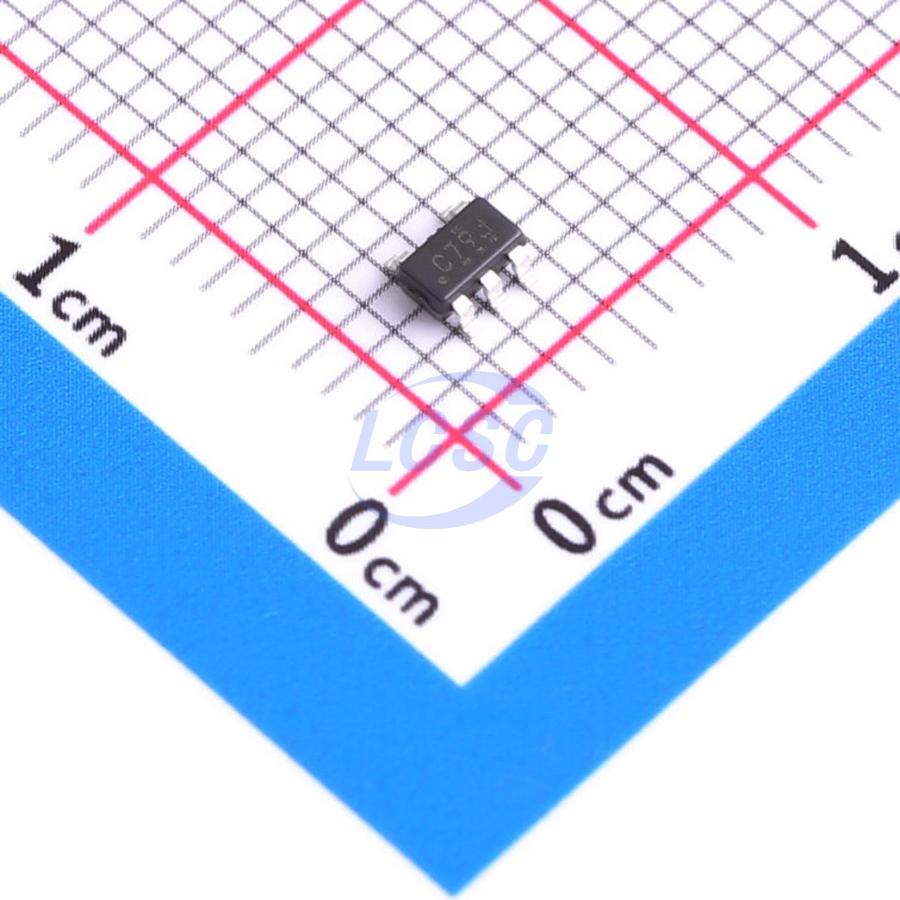

SN74LVC1G79DBVR

The SN74LVC1G79 device is a single positive-edge-triggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCC operation. When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Applications

• Test and Measurement
• Enterprise Switching
• Telecom Infrastructure
• Personal Electronics
• White Goods

Key features

• Available in the Texas Instruments NanoFree™ Package
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5V
• Supports Down Translation to VCC
• Max tpd of 6 ns at 3.3V and 50 pF load
• Low Power Consumption, 10 - μA Max ICC
• ±24 - mA Output Drive at 3.3V
• Ioff supports Partial-Power-Down Mode and Back-Drive Protection
